Precision. Speed.
Reliability.
Take your CNC machining to the next level with professional DynamiTech touch probes.

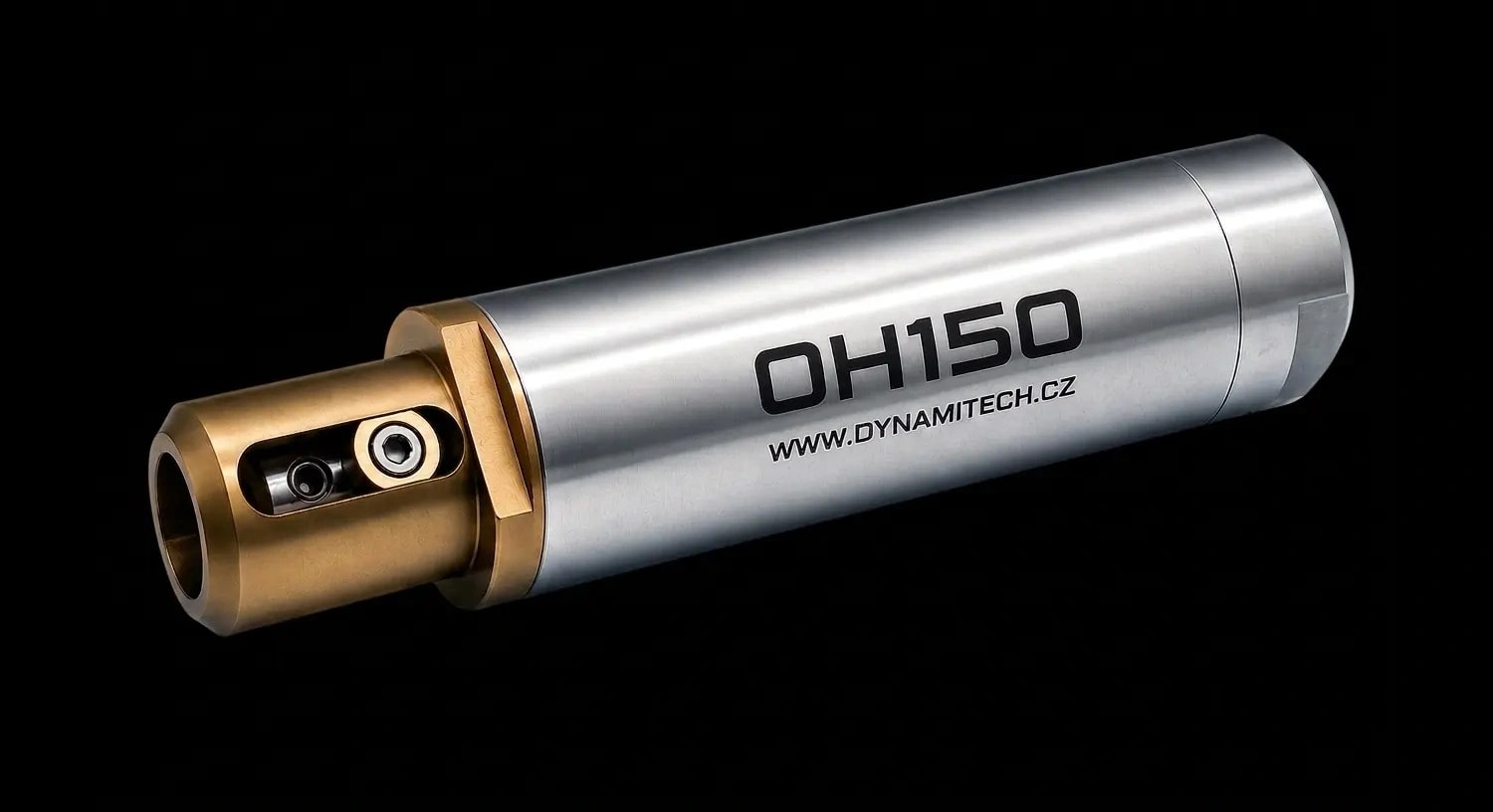

OH150 Pneumatic Oscillating Head
Pneumatic oscillating head for cutting with an oscillating tool
€1250
Why DynamiTech
- Repeatability
- 0.005 mm
- Protection rating
- IP65
- Measuring directions
- ±X, ±Y, -Z
- Supply voltage
- 5 – 24 VDC
TP1 touch probe series
Made in the Czech Republic
Designed and manufactured in-house, in the EU.
Machine compatibility
Siemens, Heidenhain, Fanuc, Haas, Mitsubishi, Mach3, Mach4, LinuxCNC, and more.
Rugged design
Sealed against coolant emulsion, oil, and dust.
Service & spare parts
Ruby styli, repairs, calibration.
Fast delivery
Most products in stock.
Technical support
Help with integrating the probe into your machine.
CNC Touch Probes

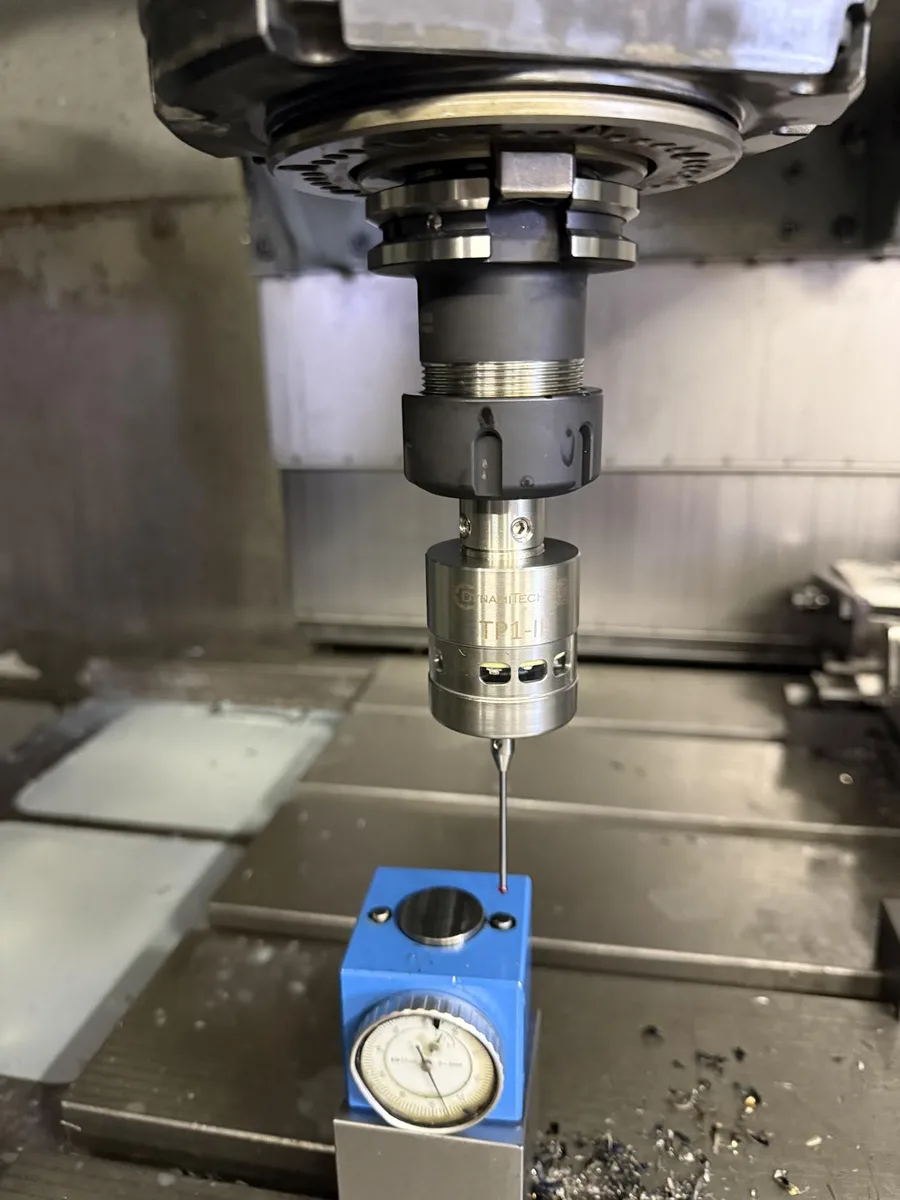

Our touch probes are designed for precise workpiece setup, tool measurement, position checking, and automatic setup of CNC machining centers, milling machines, and lathes. We offer wired and wireless probes, ruby styli, clamping systems, and accessories for a wide range of applications.
All our products are designed and manufactured to industrial quality with repeatability of up to 0.005 mm, ensuring reliable results even in demanding operation.
Our probes are used not only on CNC machining centers, but also on CNC routers, CNC woodworking machines, laser and plasma cutting machines, waterjet cutting machines, and in industrial automation as high-precision limit switches.
Reduce scrap rates, shorten setup times, and increase production productivity with DynamiTech measuring probes.
TP1 Touch Probes in Multiple Variants

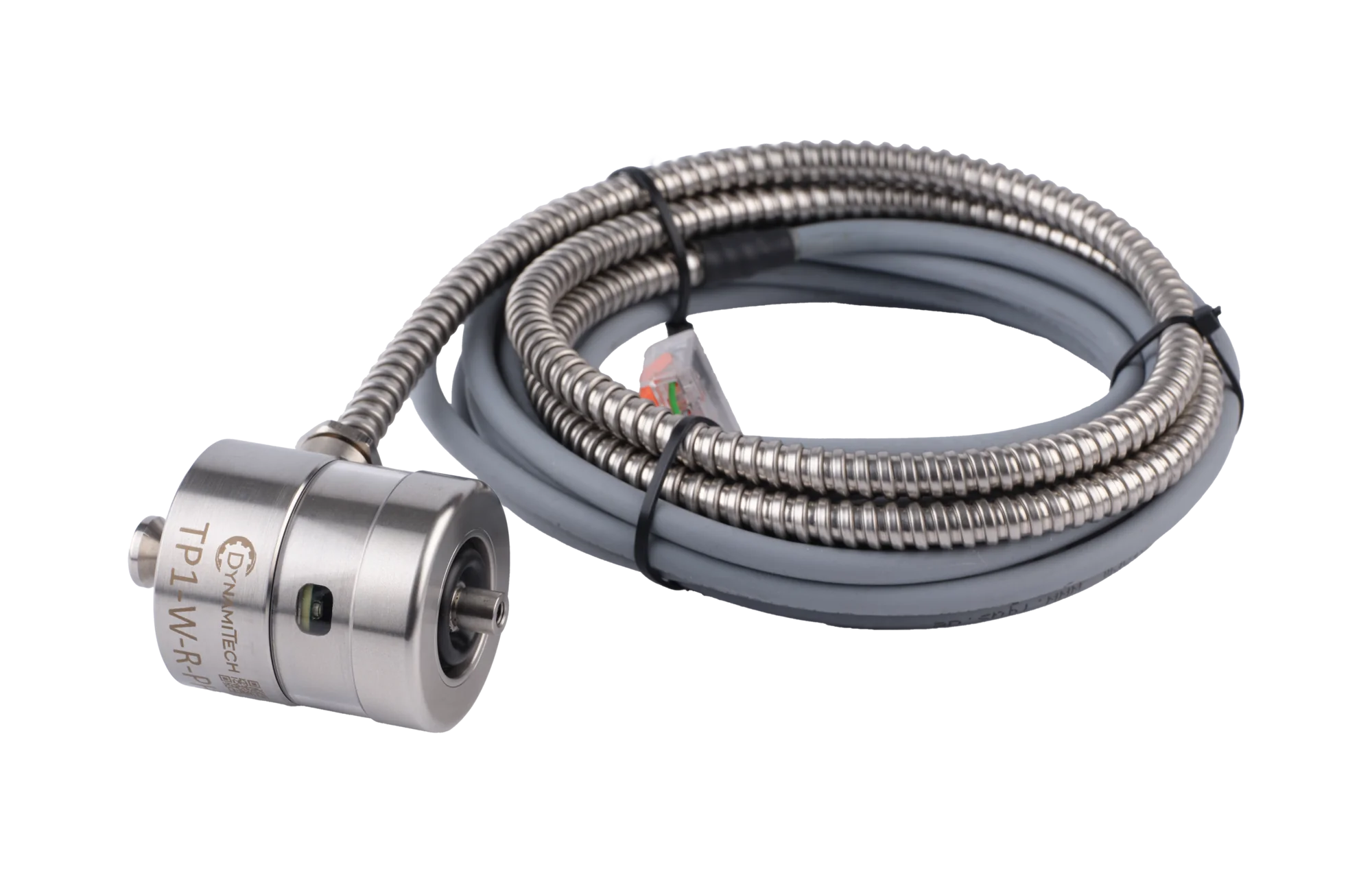

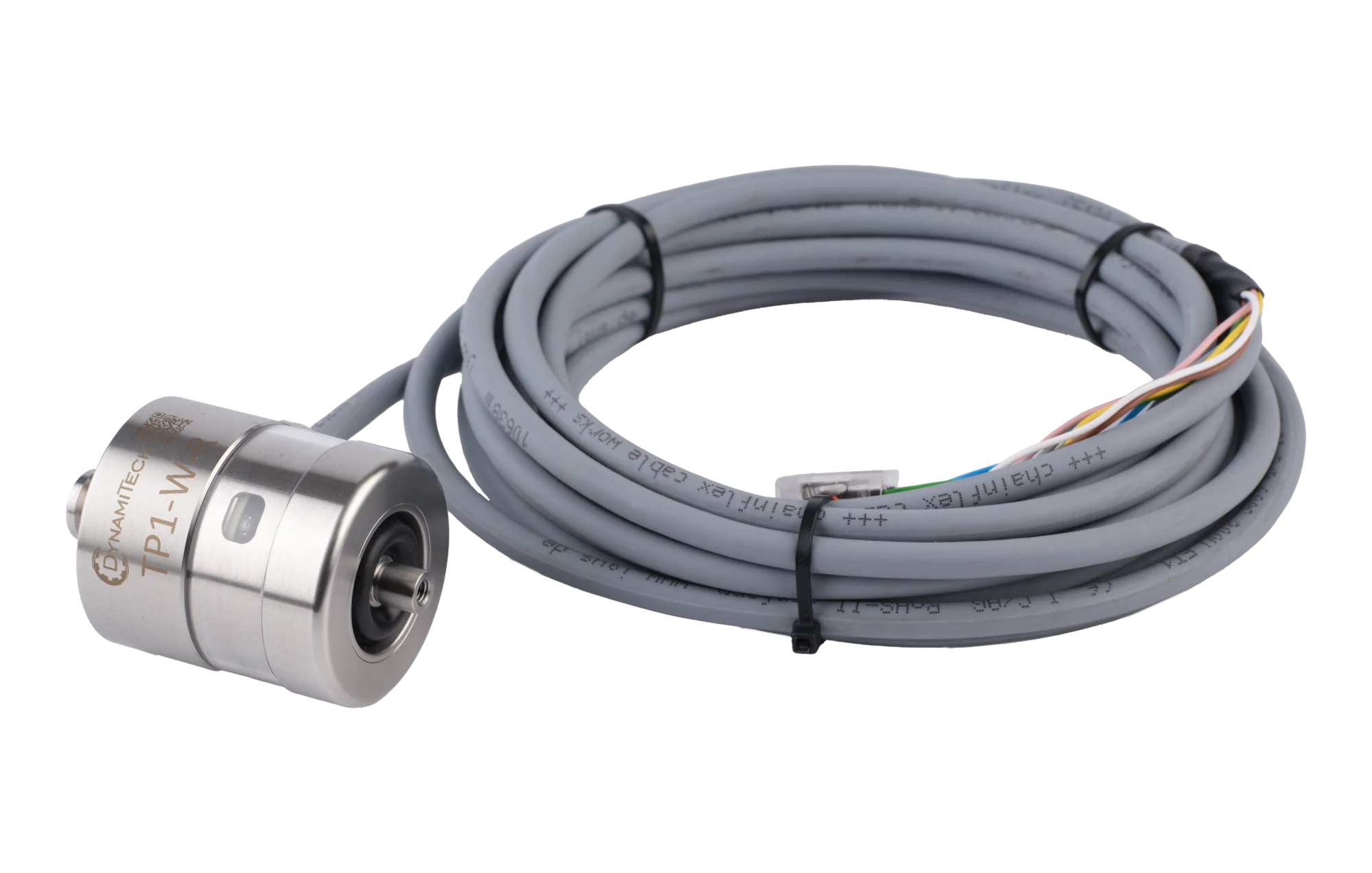

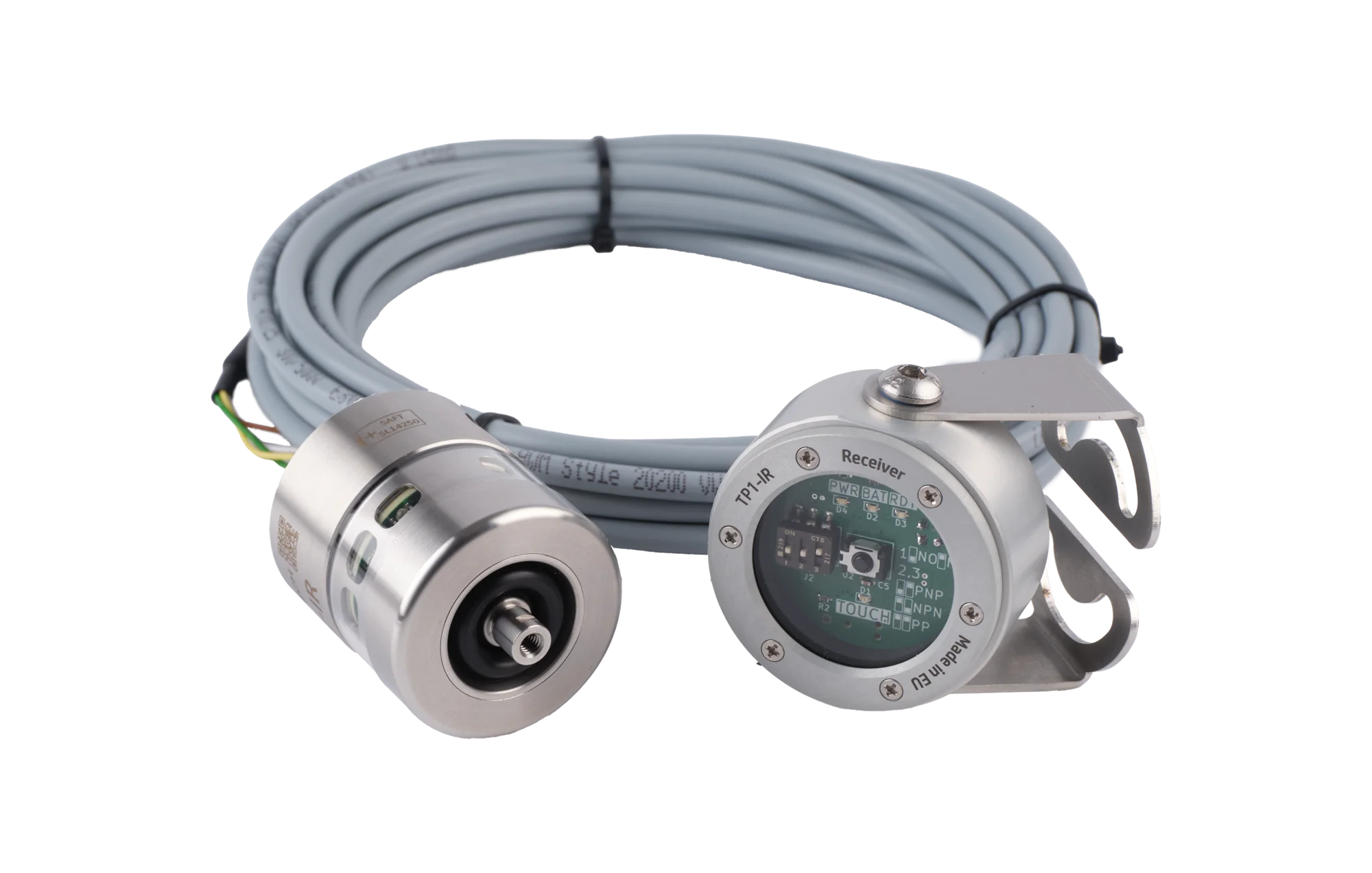

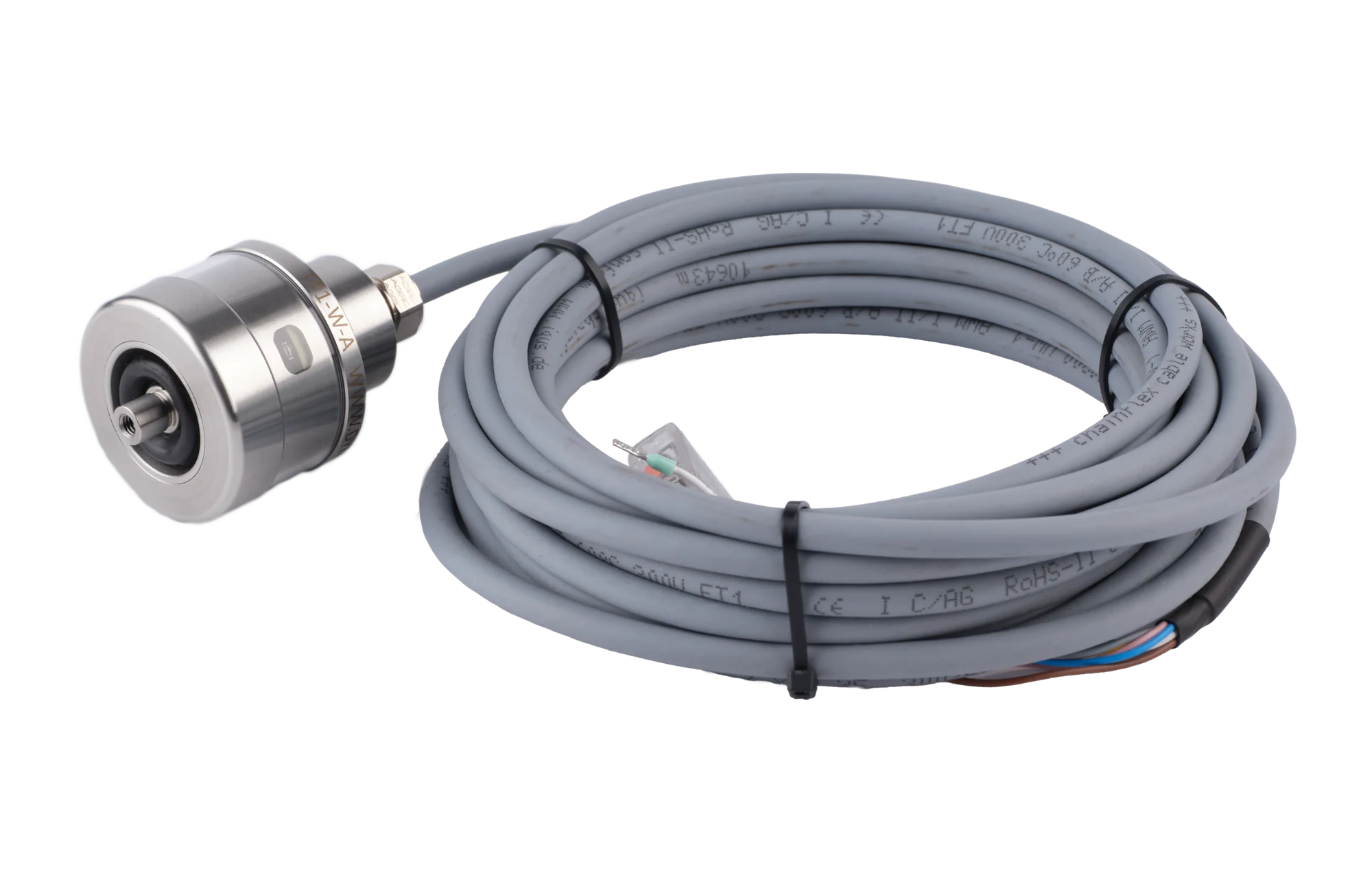

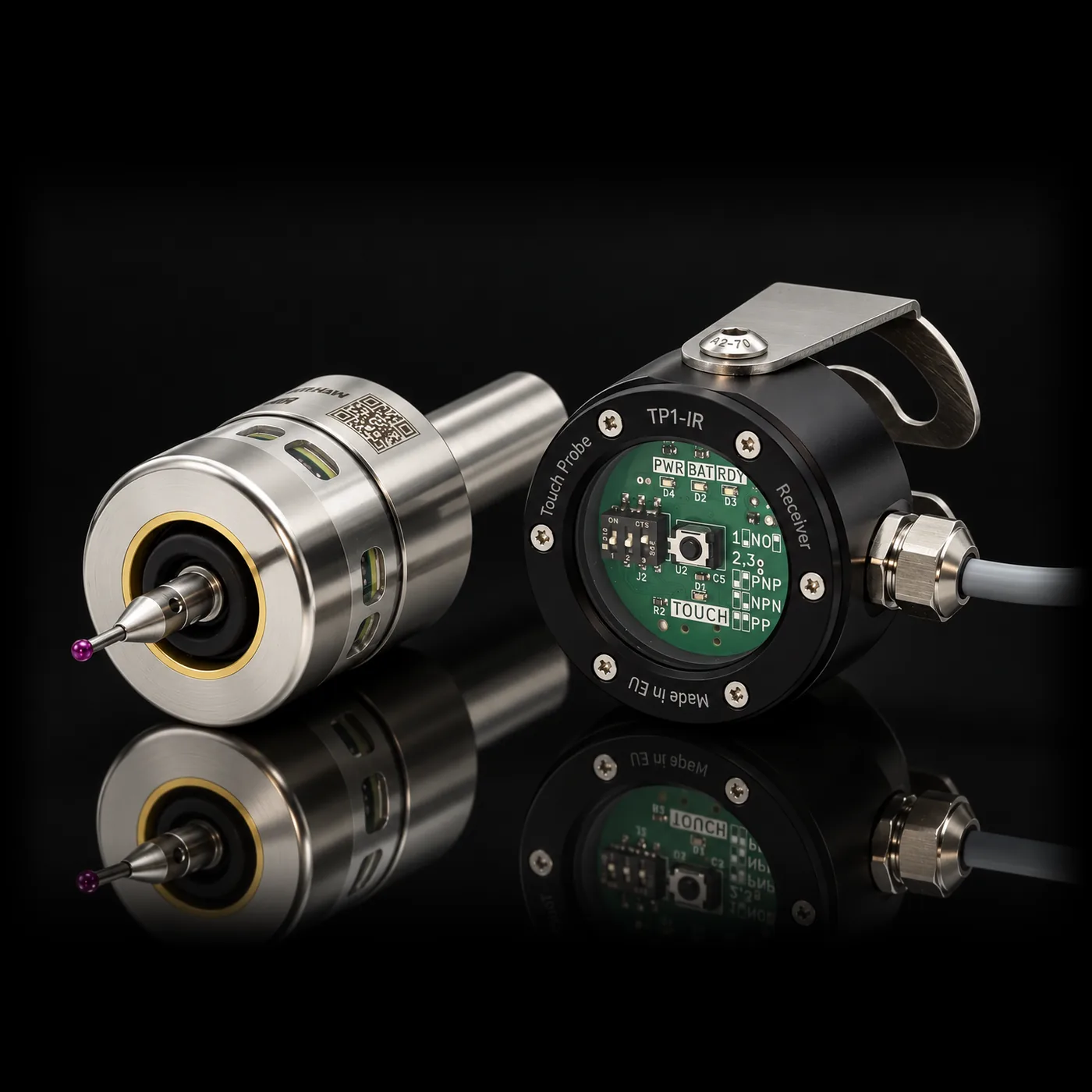

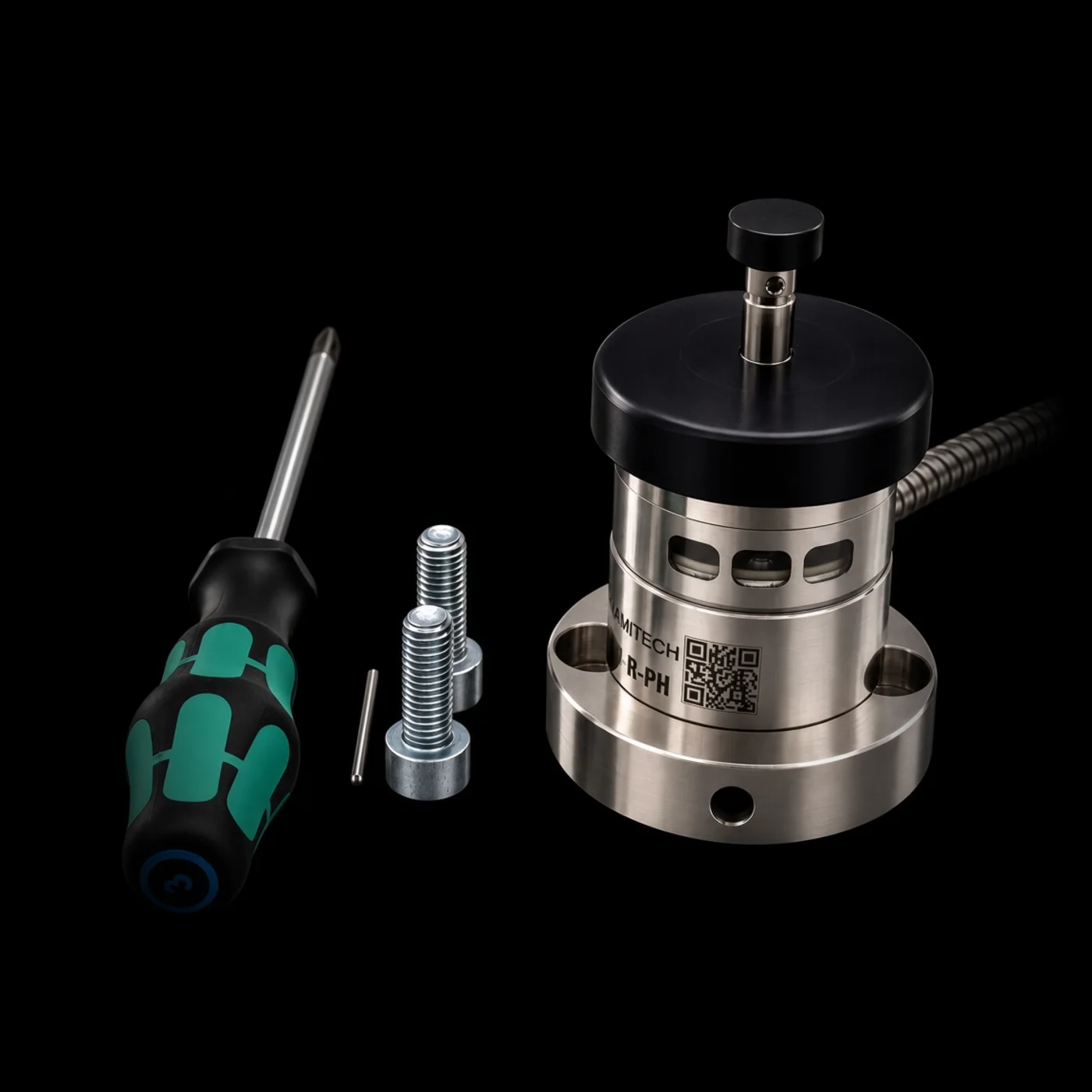

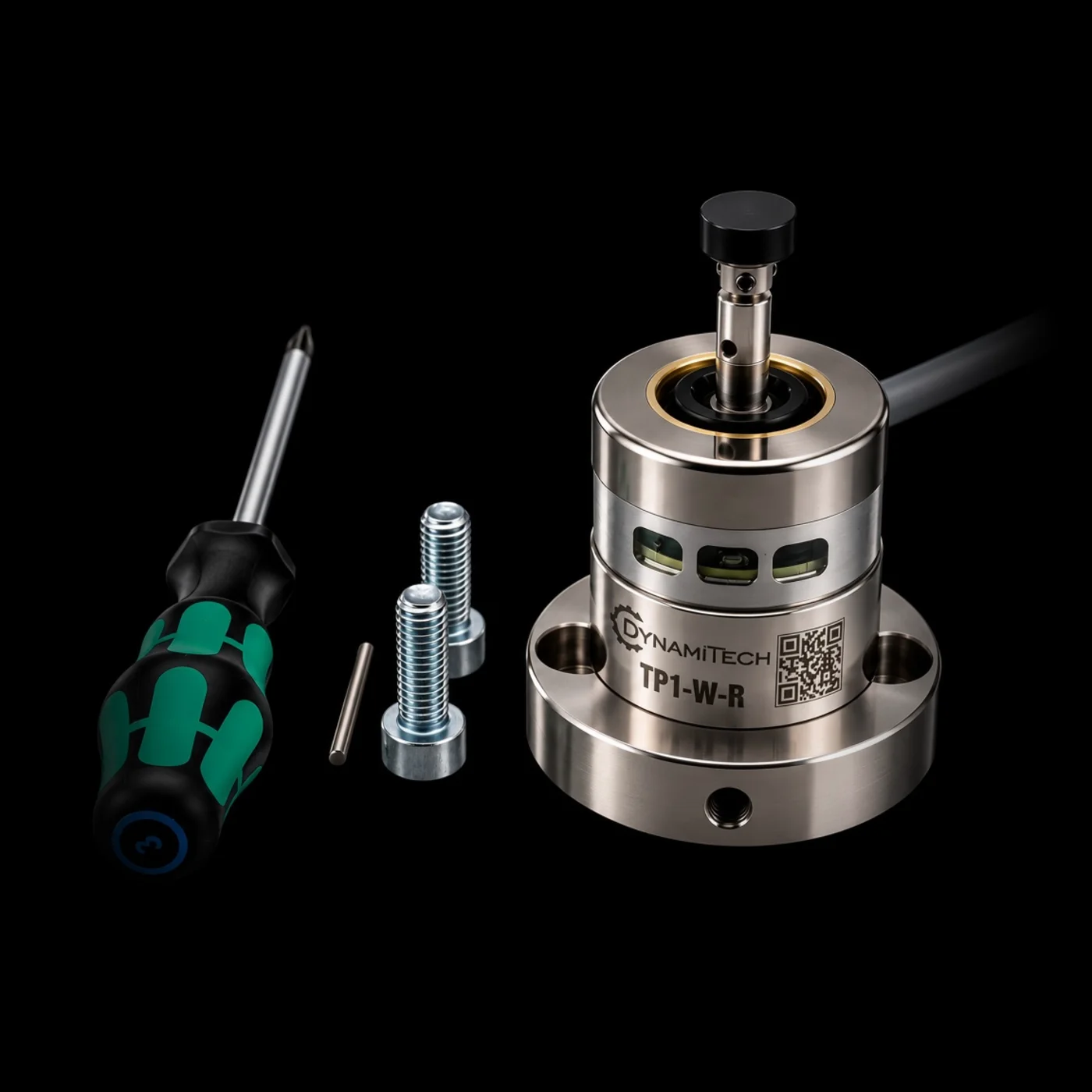

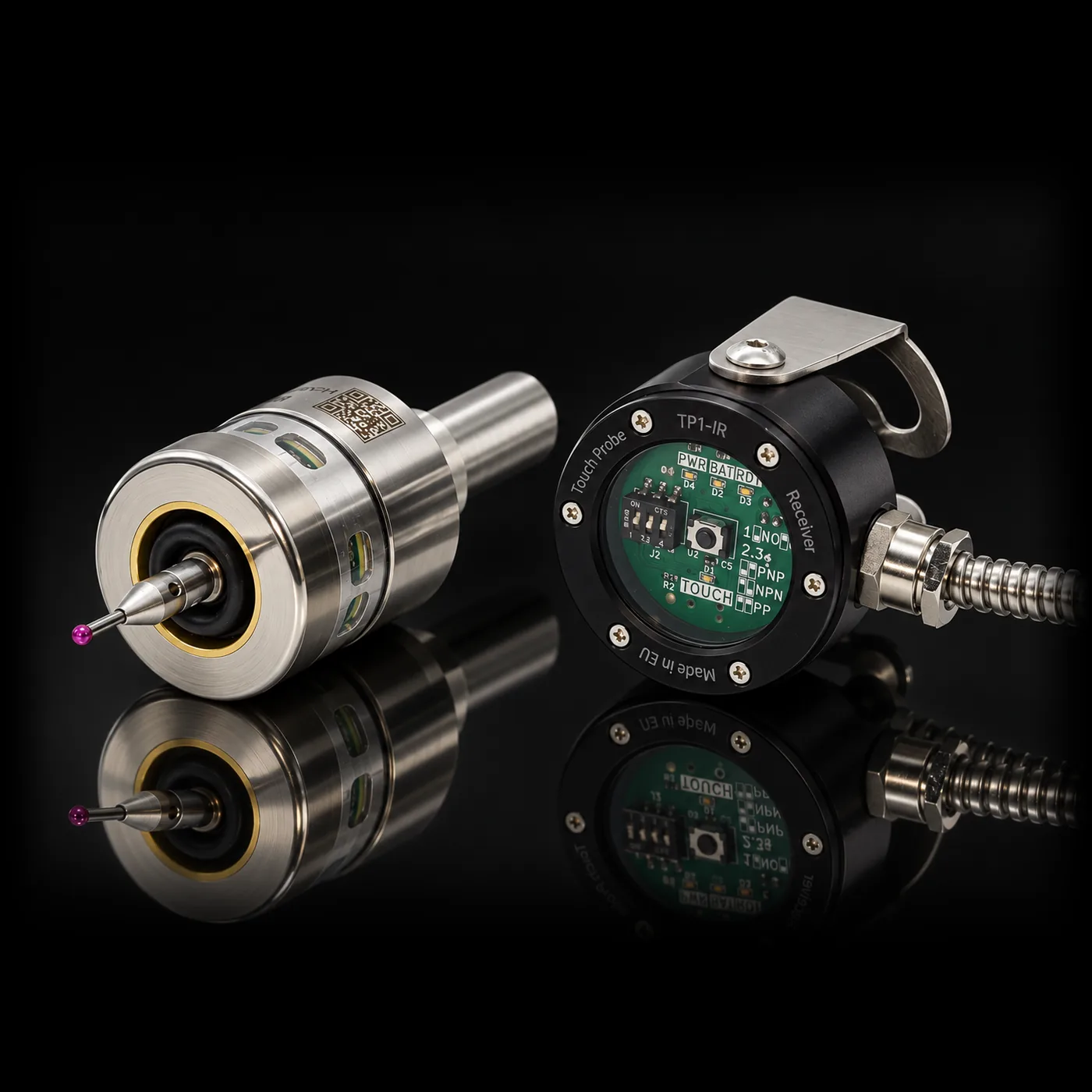

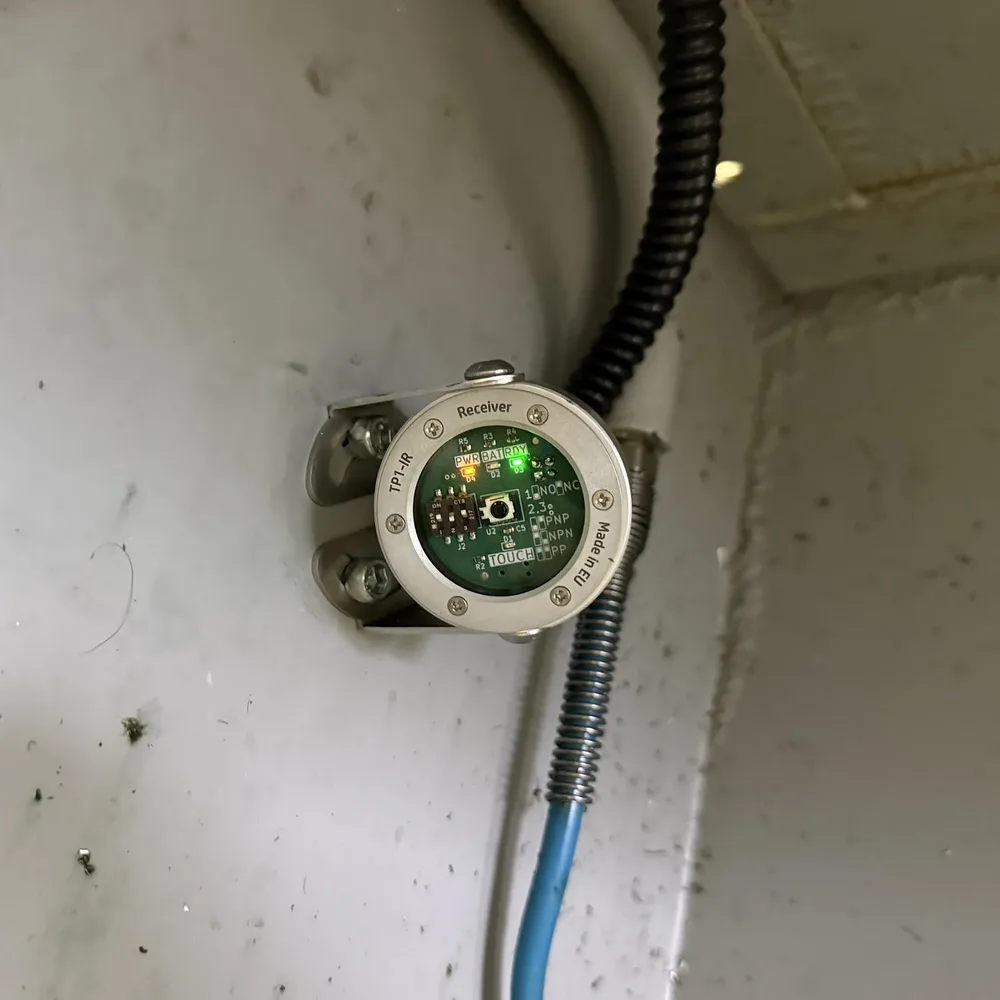

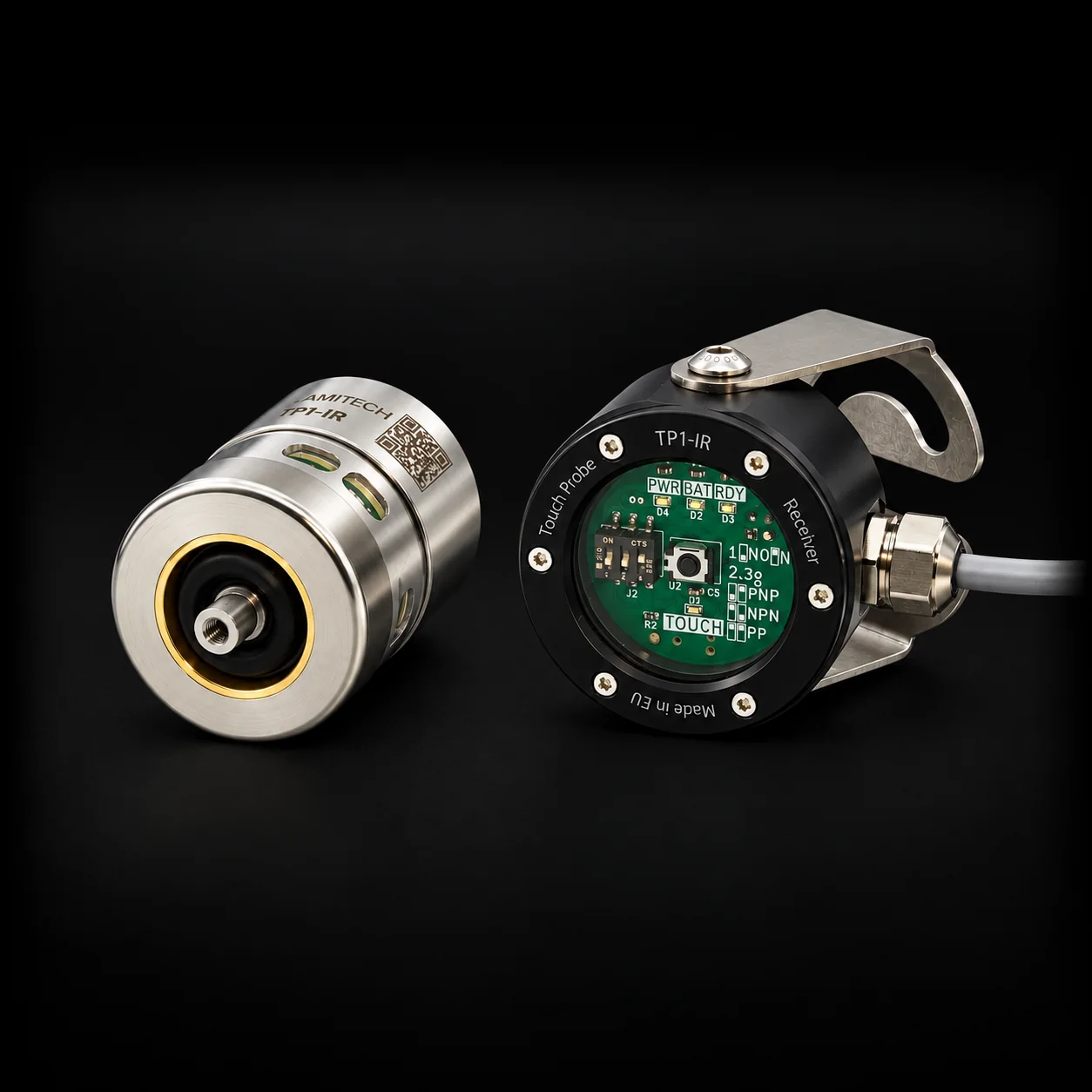

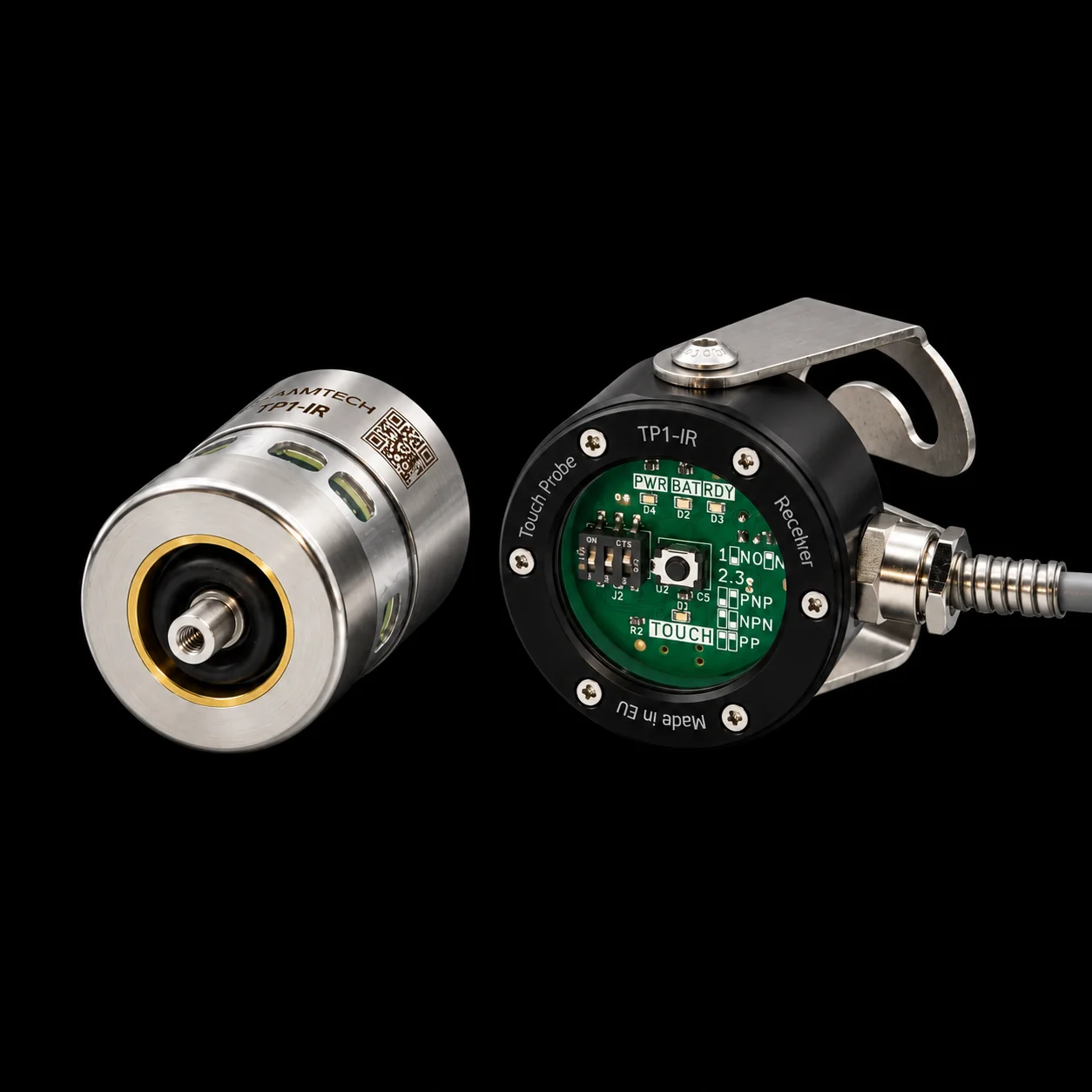

The TP1 probe product line is manufactured as wireless with IR signal transmission or wired. Wireless TP1 probes can be used at distances up to 5 m with direct line of sight. We produce wired probes with both axial and radial cable outlets, and for the radial version you can also choose a cable with a stainless steel conduit.
TP1 probes feature a wide supply voltage range of 5 – 24 VDC, configurable NC and NO output signal logic, and PNP, NPN, or universal Push-Pull output configuration.
Accessories & Styli

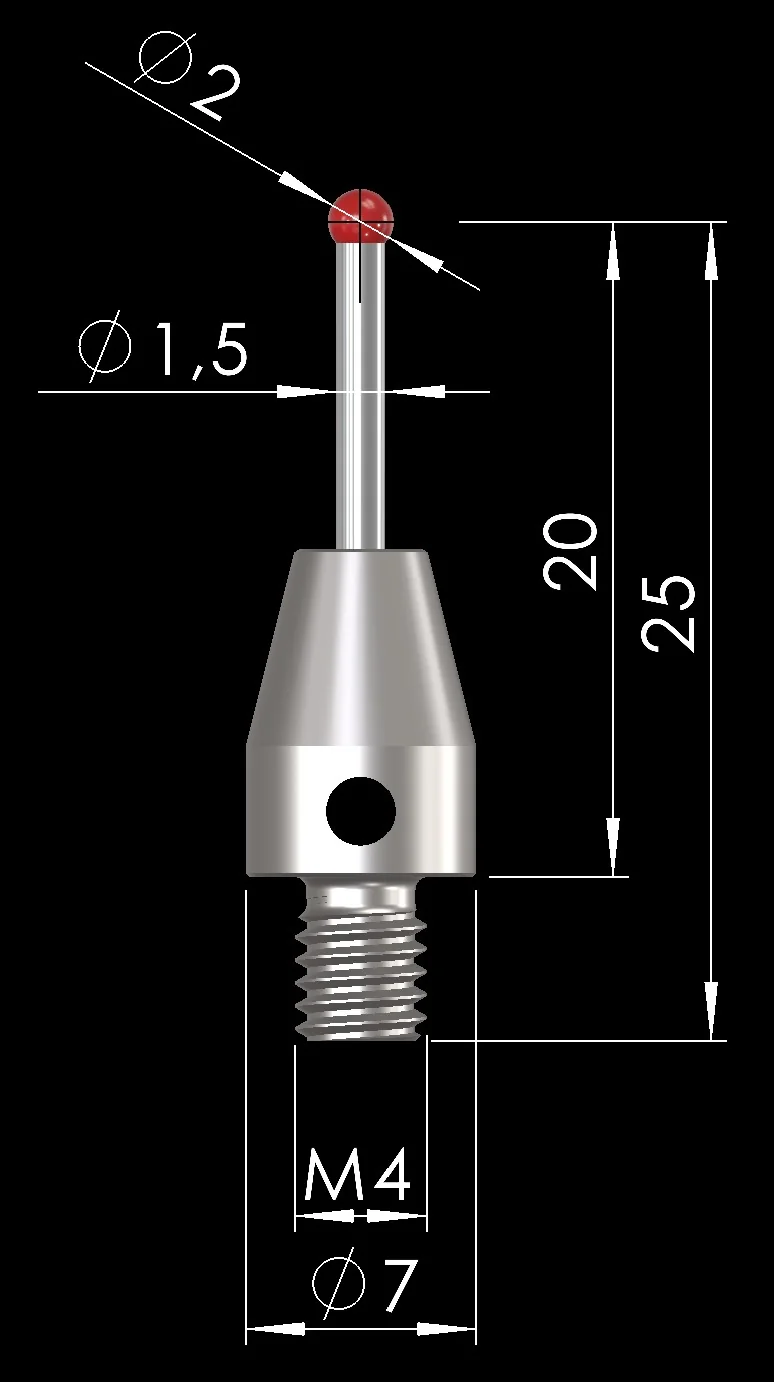

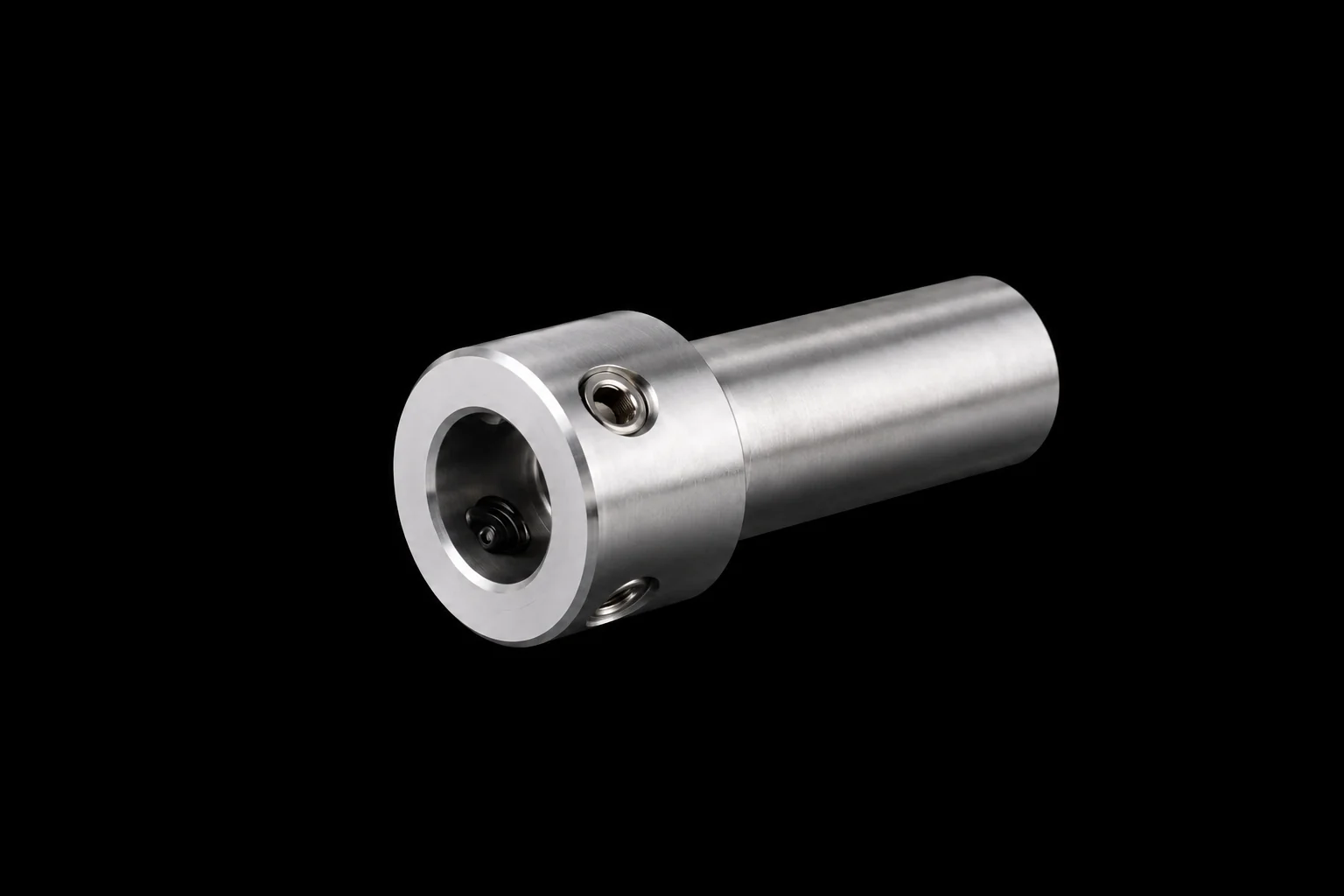

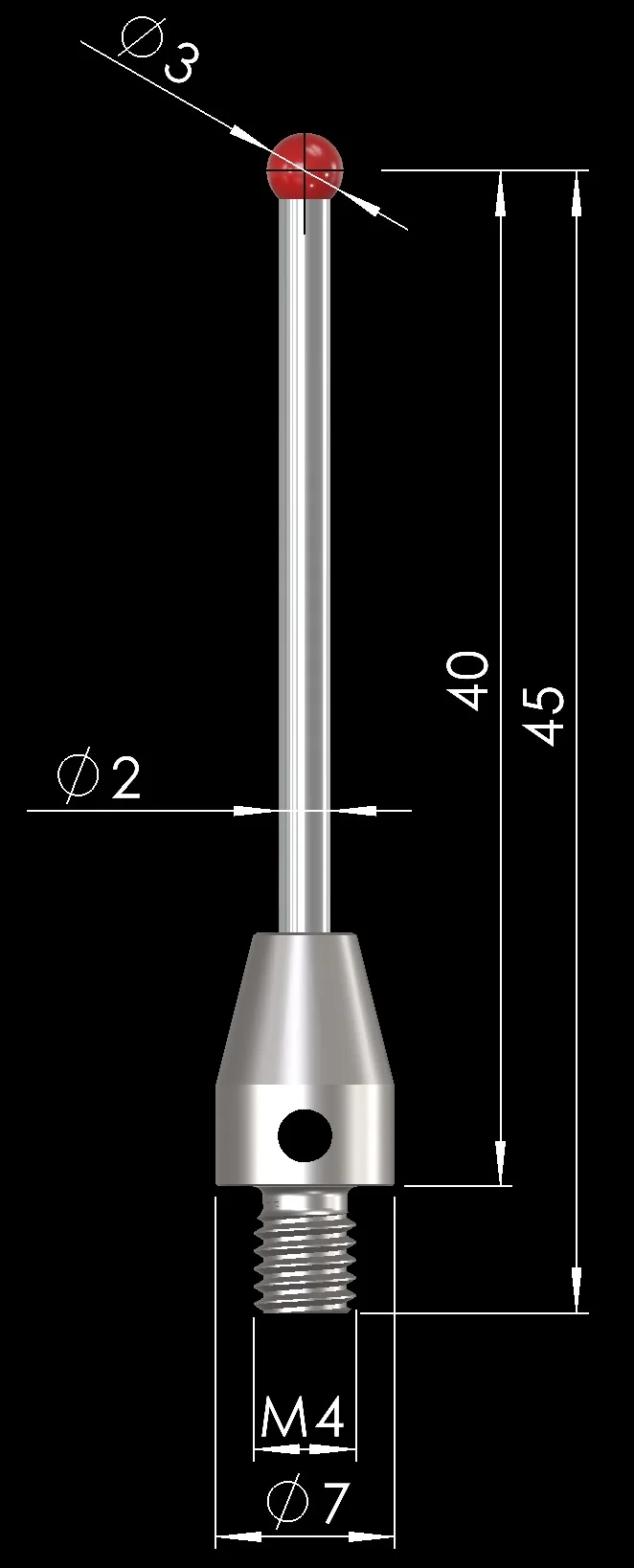

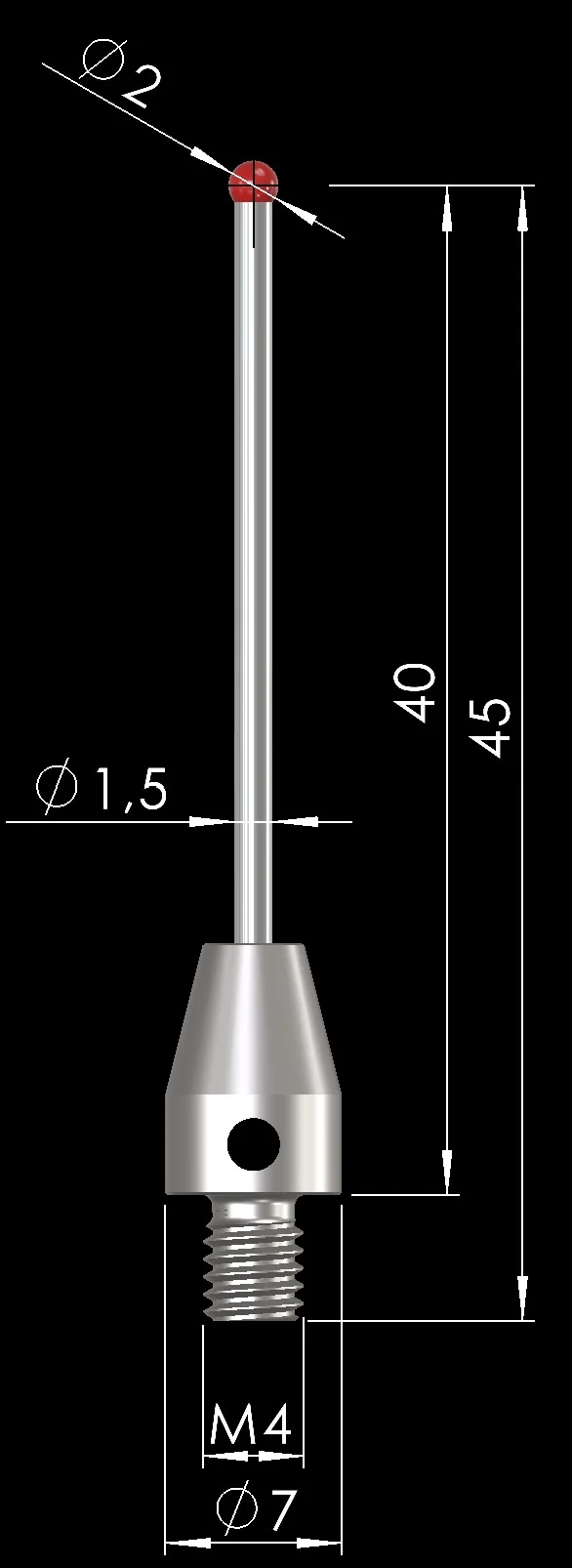

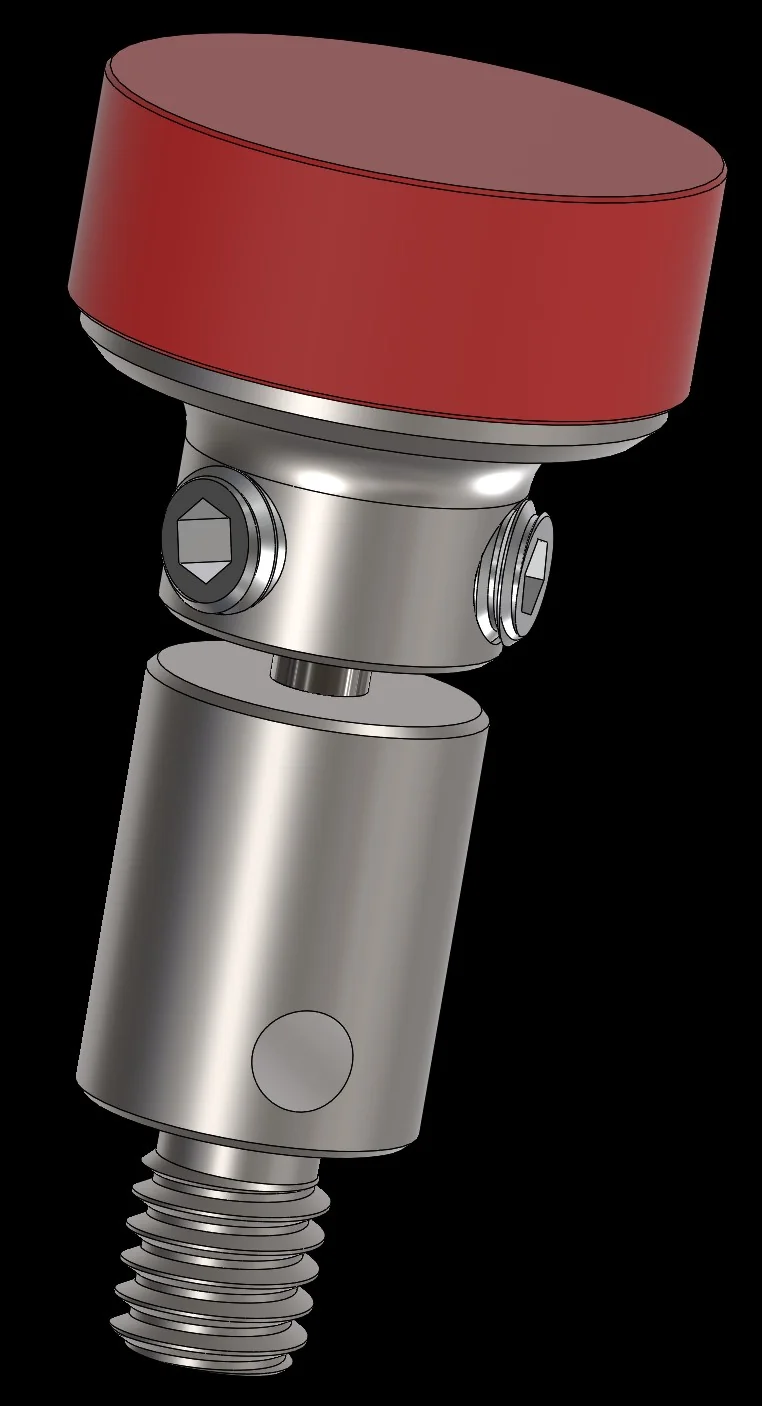

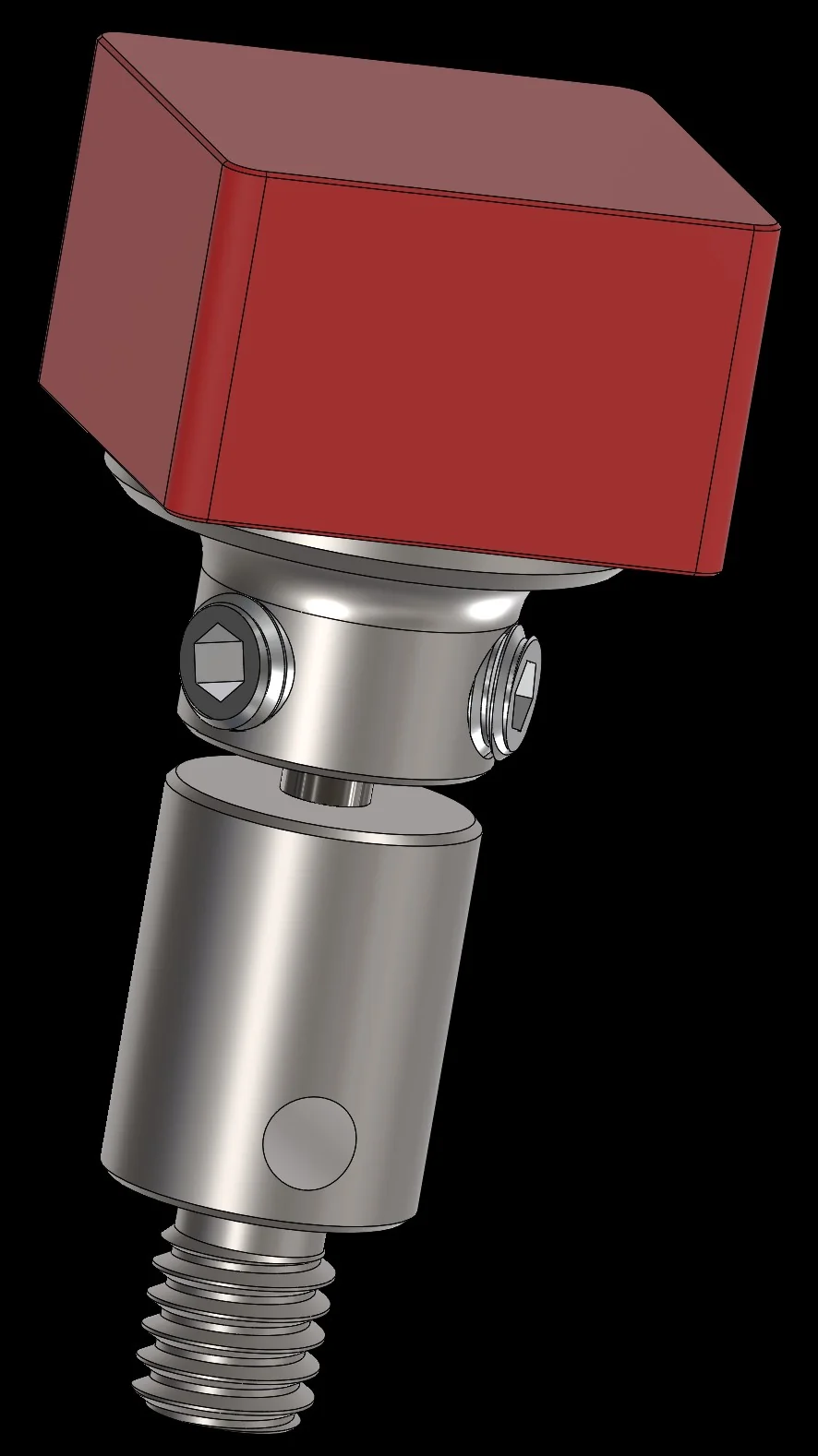

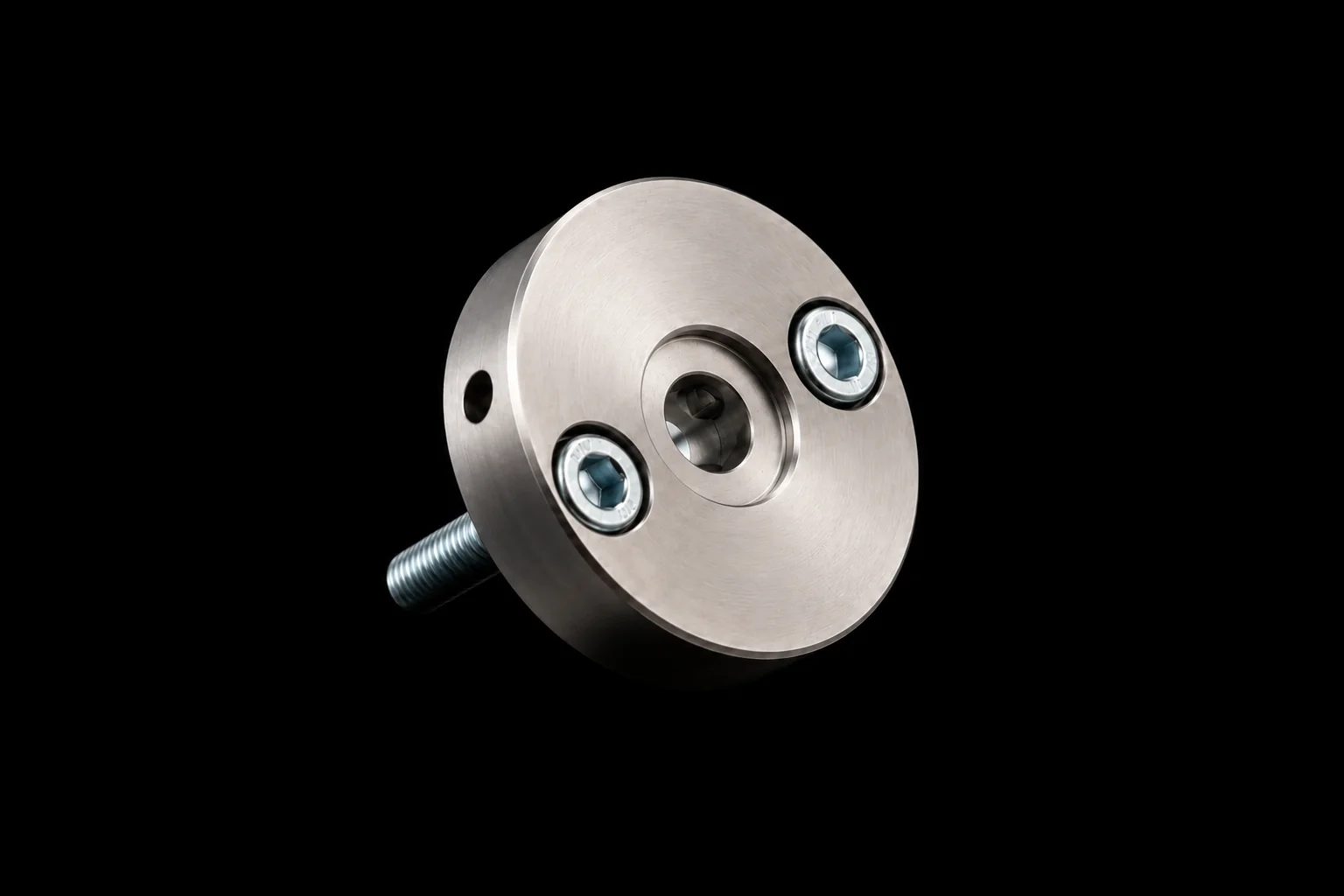

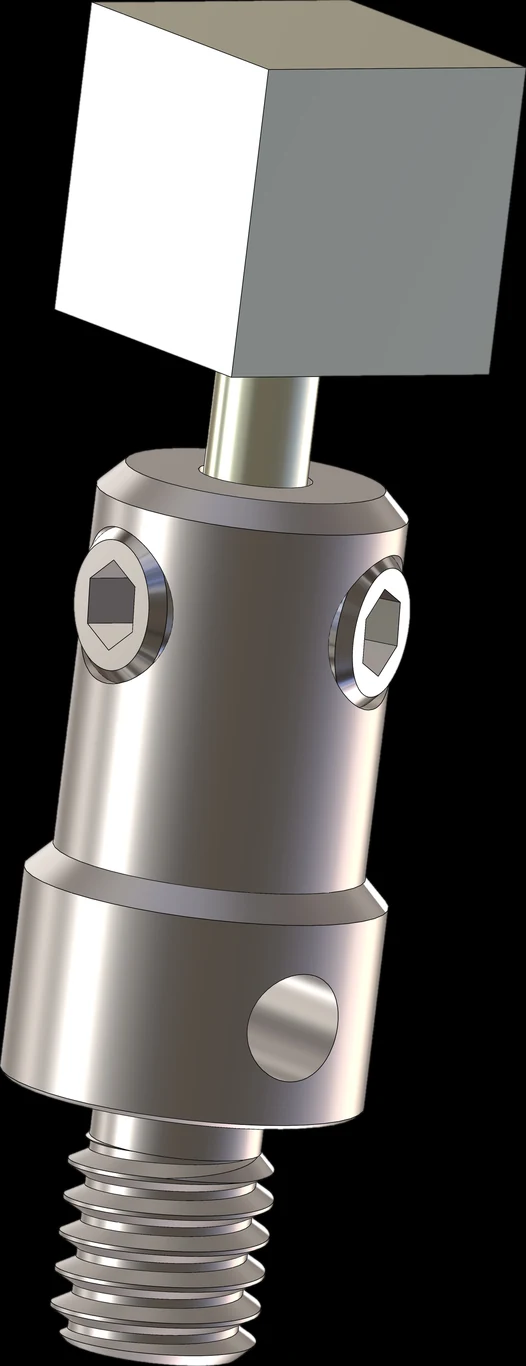

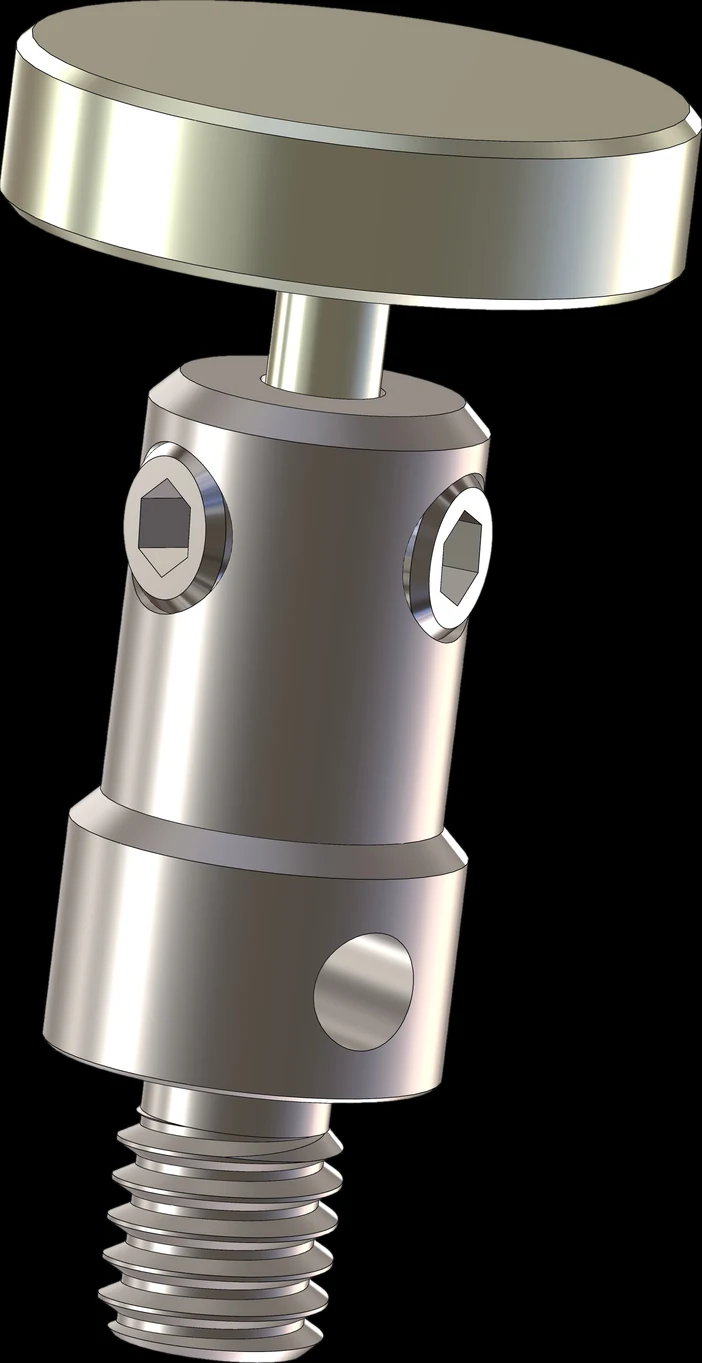

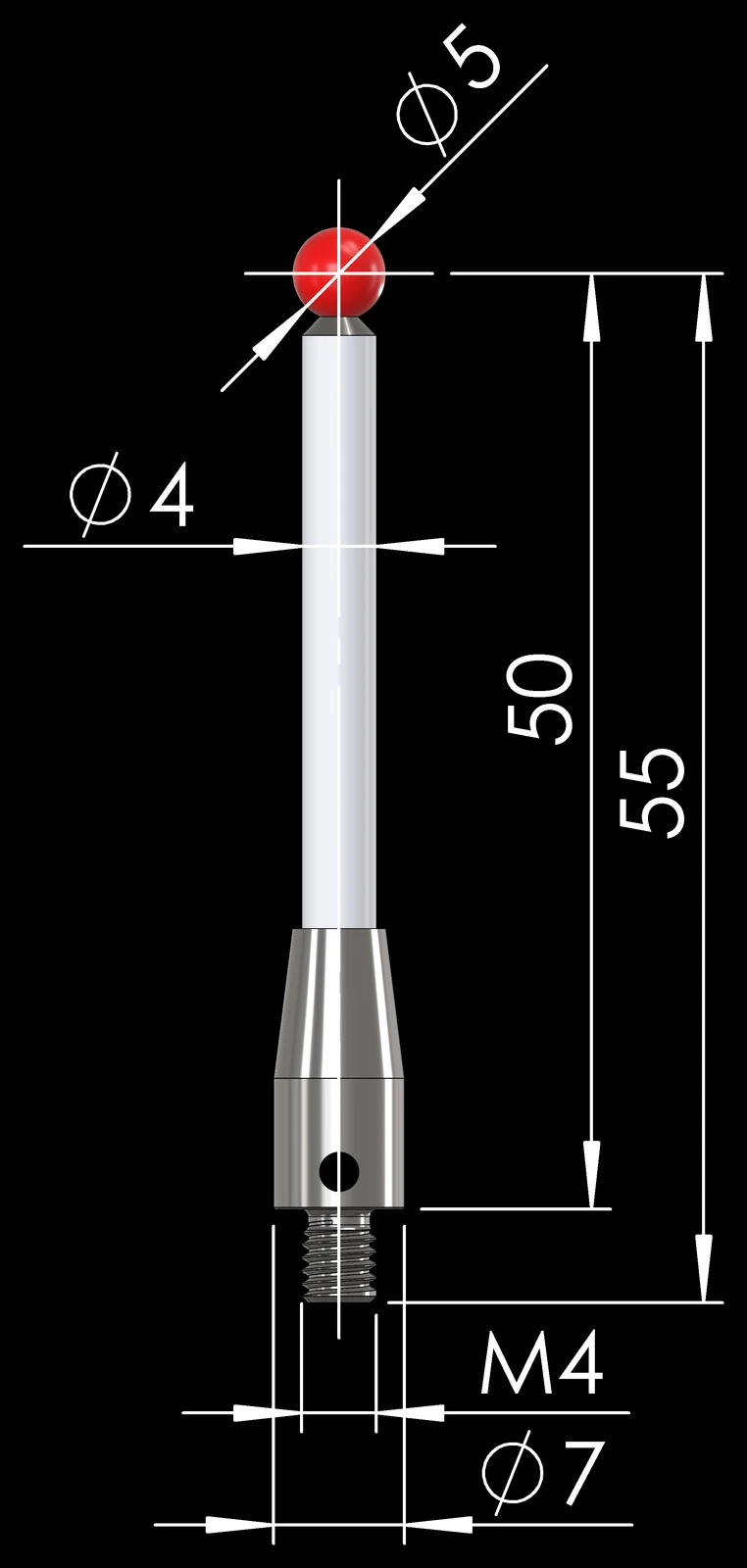

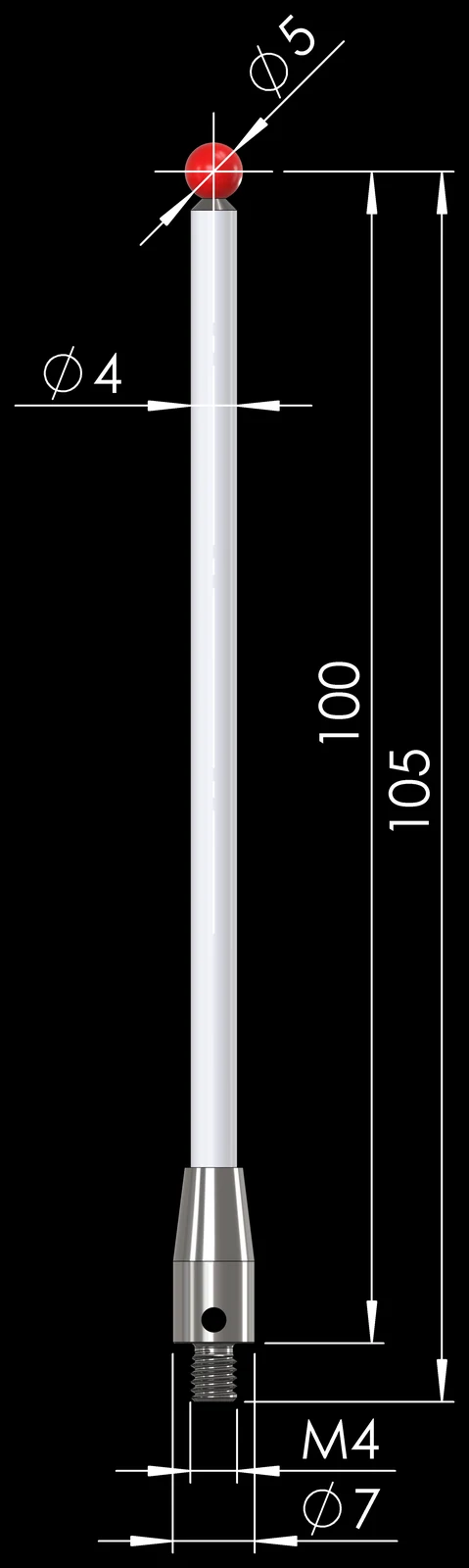

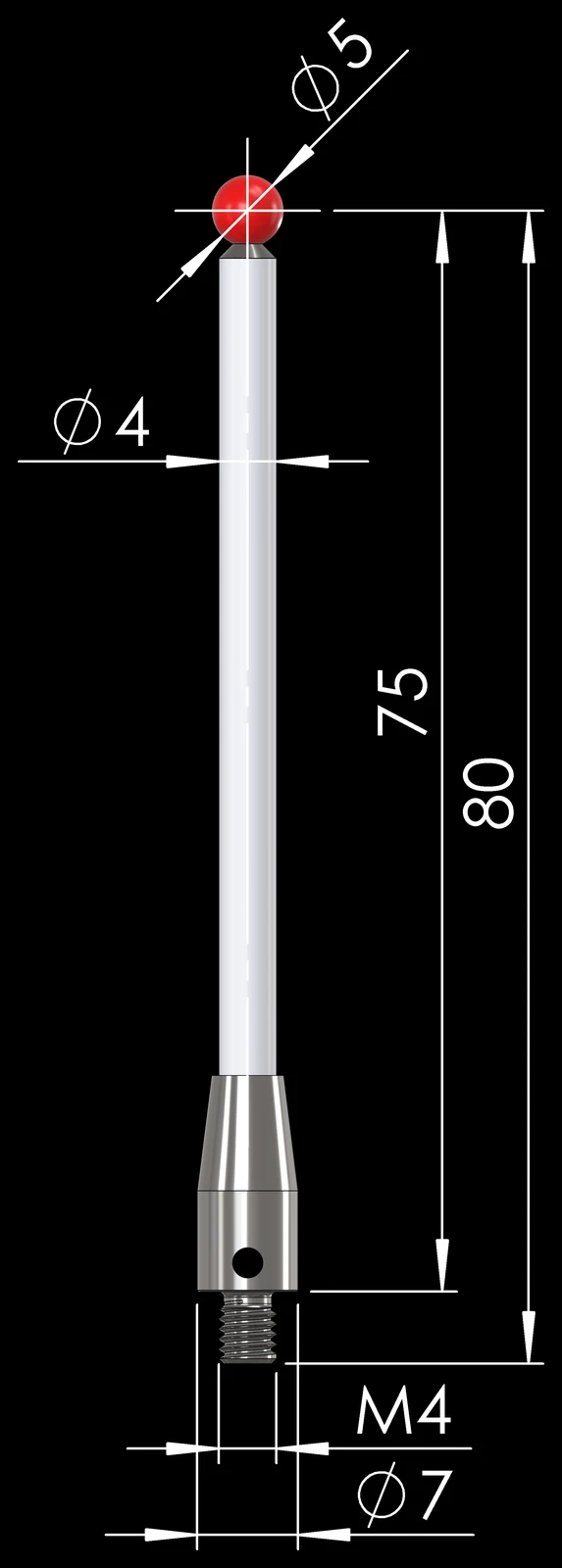

We provide everything you need for a complete measuring setup — from clamping shanks and base plates to measuring discs, cubes, and precise ruby styli. Our ruby ball styli are available in various diameters and lengths with M4 threading, giving you the flexibility to match your specific measuring requirements.

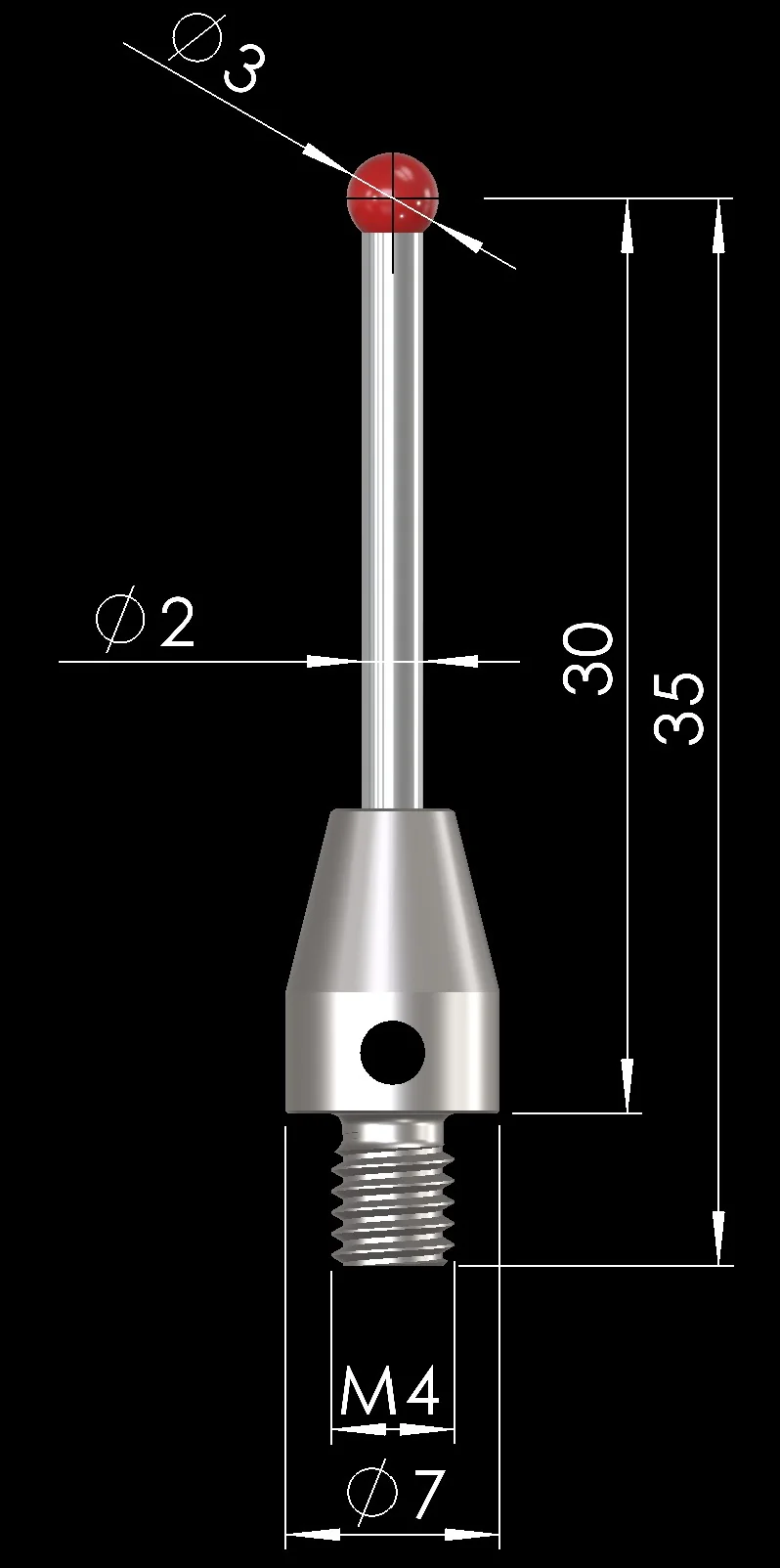

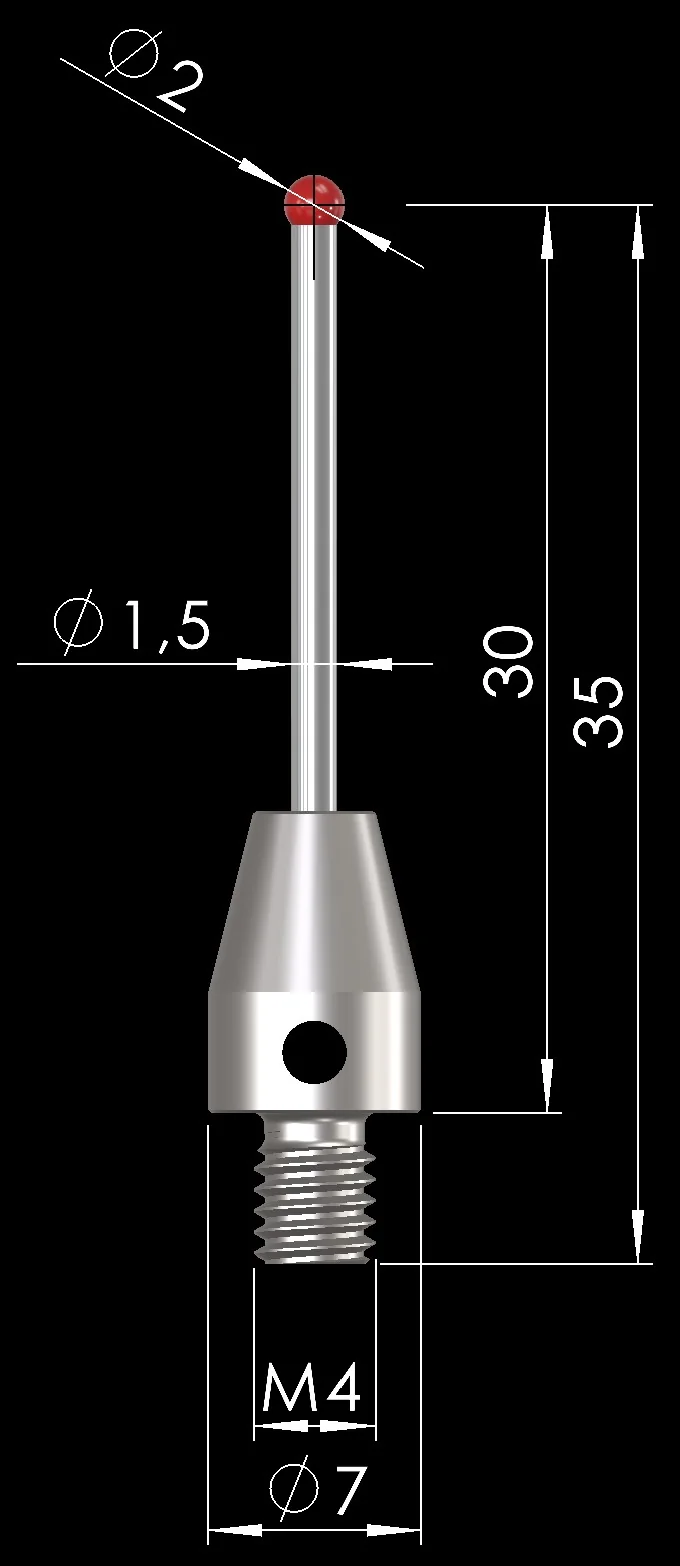

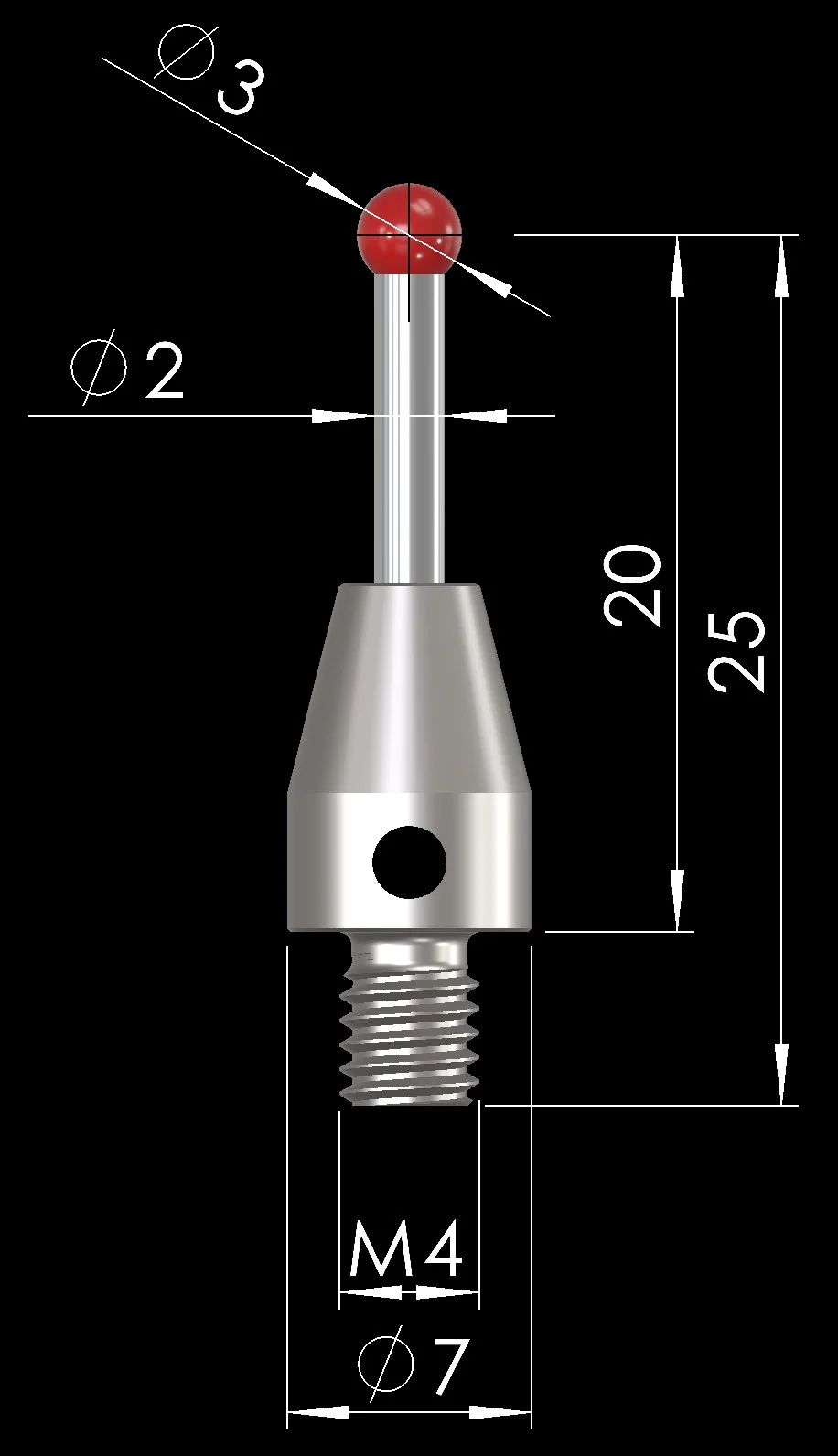

Whether you need a compact D2 mm ruby tip for tight spaces or a larger D3 mm ball for surface scanning, our range of styli covers lengths from 20 mm to 40 mm.
