Wired
TP1-W-R COMBO Touch Probe

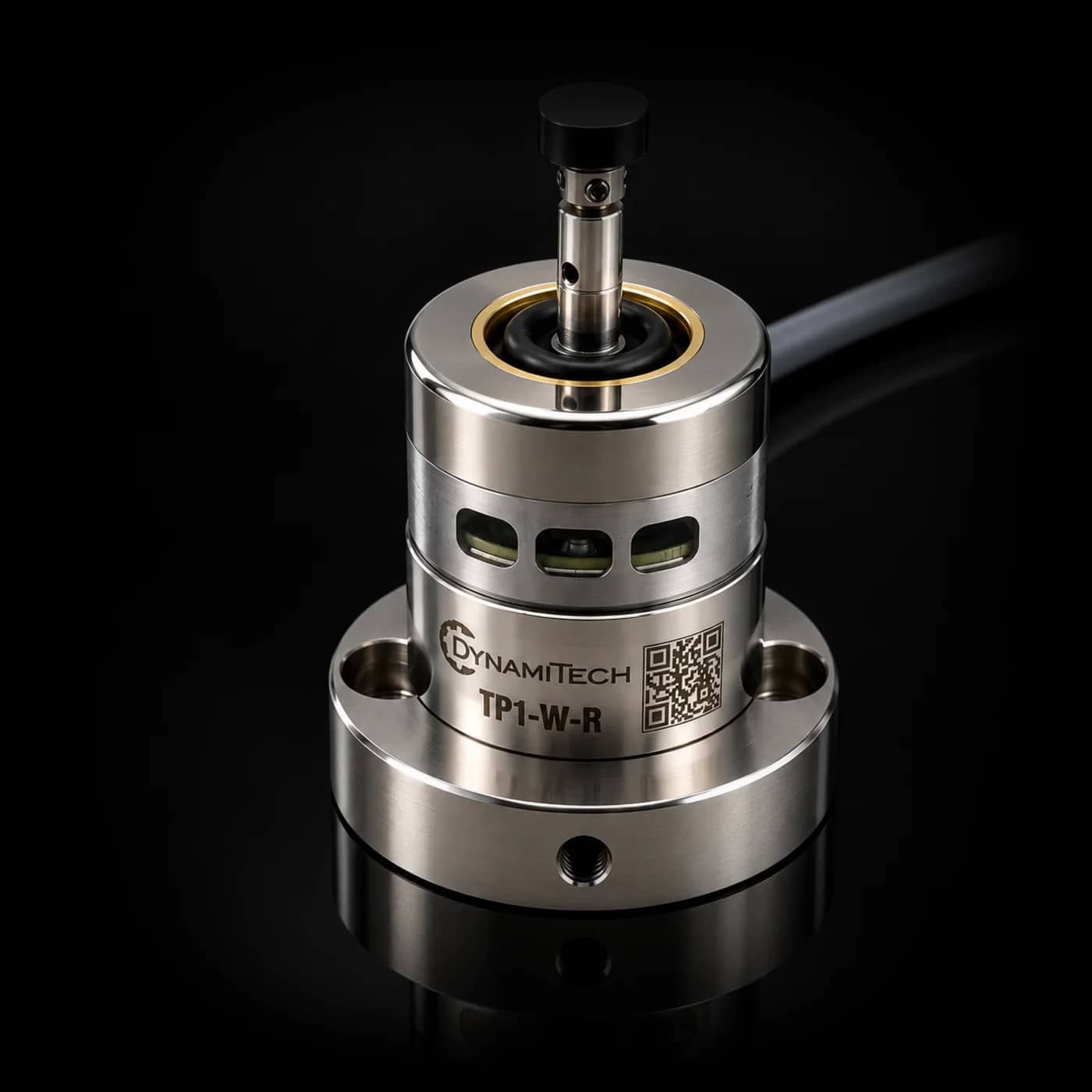

Wired probe with BP58 base plate and measuring disc
€860
Key Specifications
- Measuring principle
- Kinematic 3-point seating
- Repeatability (stylus L30 mm)
- 0.005 mm
- Measuring direction
- ±X, ±Y, -Z
- Measuring force XY / Z (stylus L30 mm)
- 2 N / 6 N
- Maximum deflection XY / Z
- ±10° / 4.5 mm
- Maximum measuring speed
- 2 m/min
Description
The TP1-W-R touch probe is used for precise workpiece setup and tool measurement on CNC machine tools or as a precision limit switch in automation. On this model the cable exits radially.
The COMBO set adds the BP58 base plate and an M4/D12.7×4.7 cubic boron nitride measuring disc to the probe, delivered as an assembly ready to mount on the machine table for measuring tool length and diameter offsets.

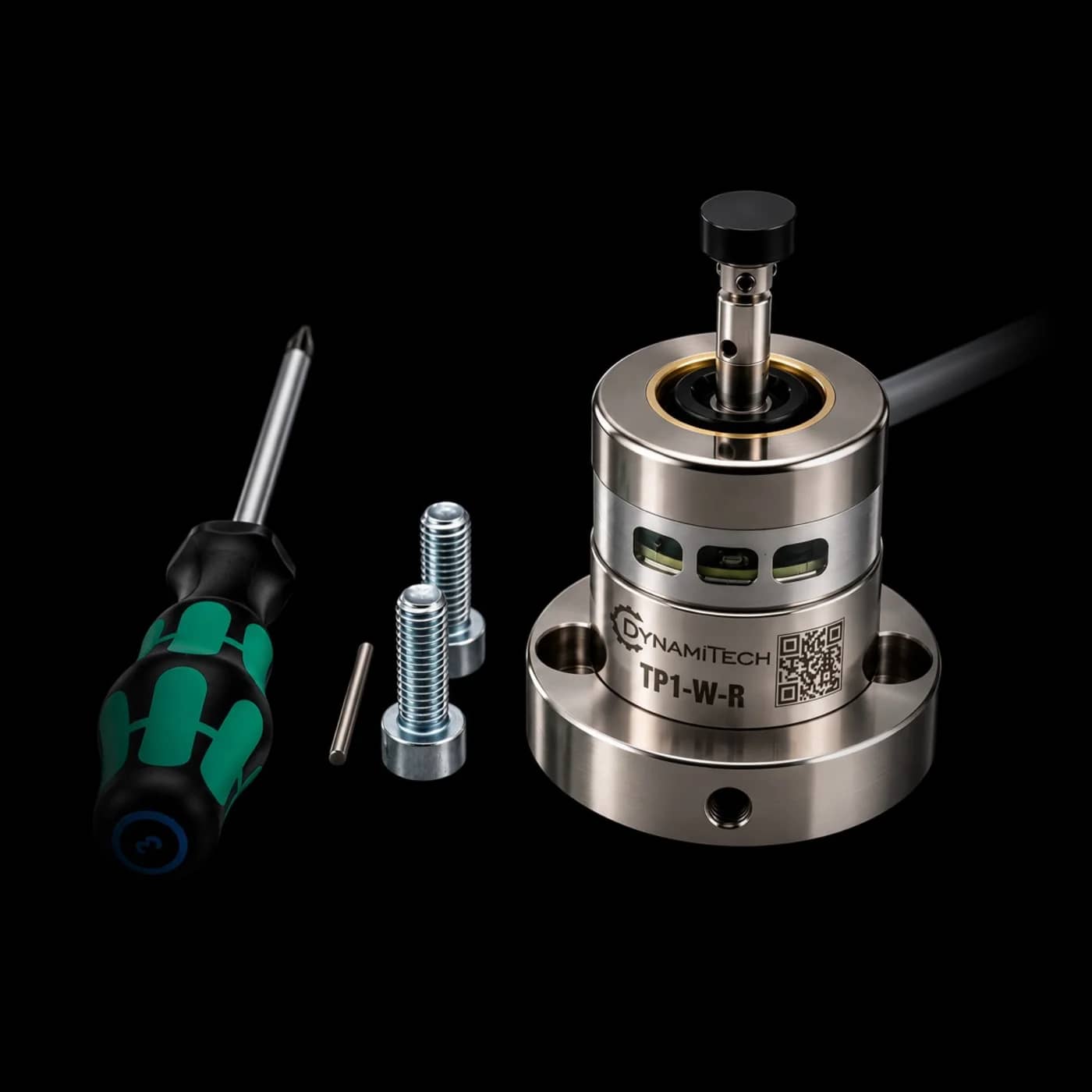

Package Contents
1× TP1-W-R touch probe
Kinematic 3-point seating, 0.005 mm repeatability, IP65
1× Connection cable, 5 m, radial exit
7 × 0.25 mm², Touch output signal, 5 – 24 VDC supply
1× BP58 base plate
For mounting the probe on the machine work table
1× CBN measuring disc M4/D12.7×4.7
Cubic boron nitride, M4 thread — tool length and diameter offsets on milling machines
1× Adjustment tool set
For centering the stylus and adjusting the probe
The CS16 clamping shank, for mounting the probe in the machine spindle, is ordered separately.
Wiring
No links
Set by linking conductors at the cable end, with the supplied PCT-414 terminal.
