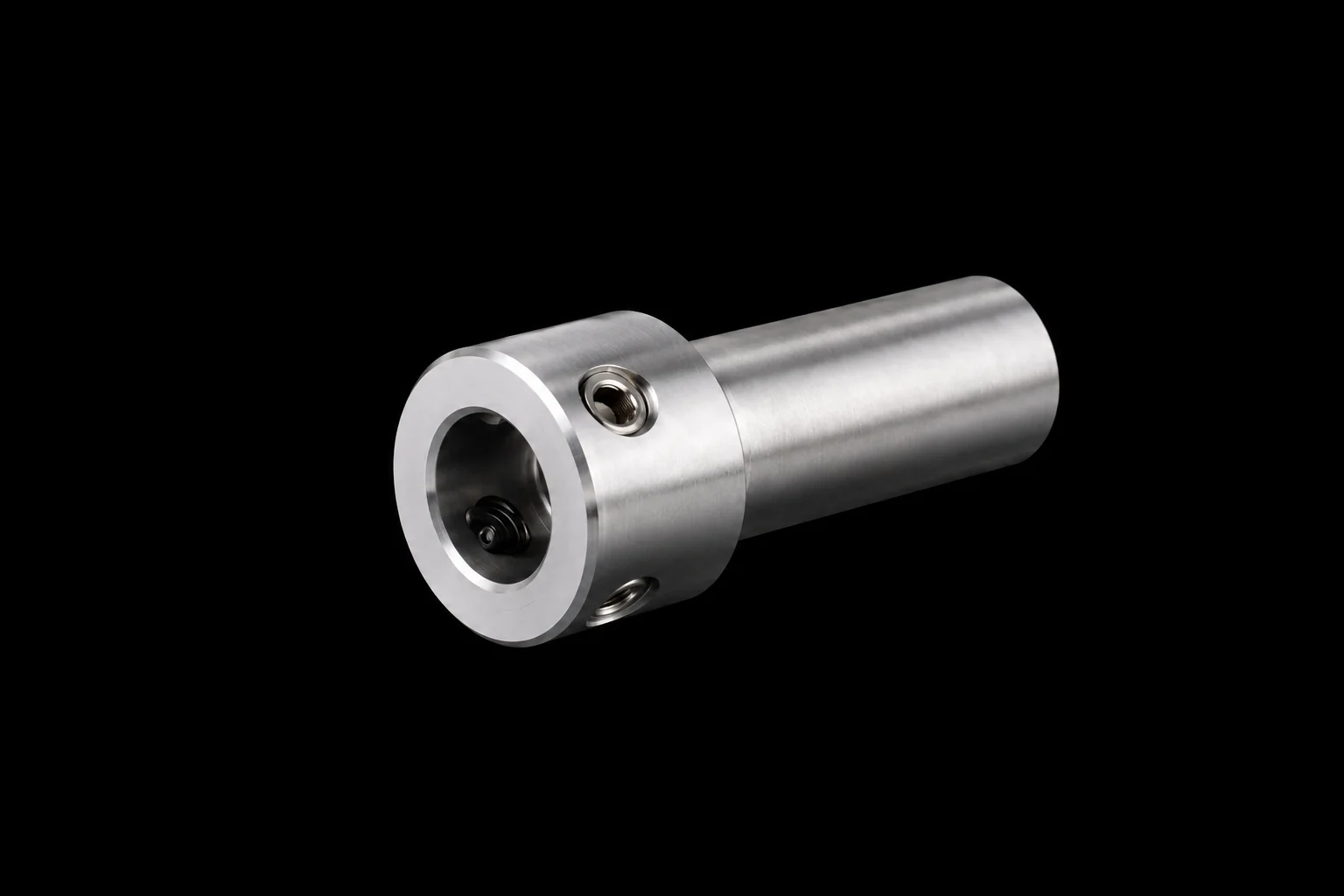

CS16 Clamping Shank – Clamping shank for mounting TP1 in the machine spindle

CS16 Clamping Shank

€35

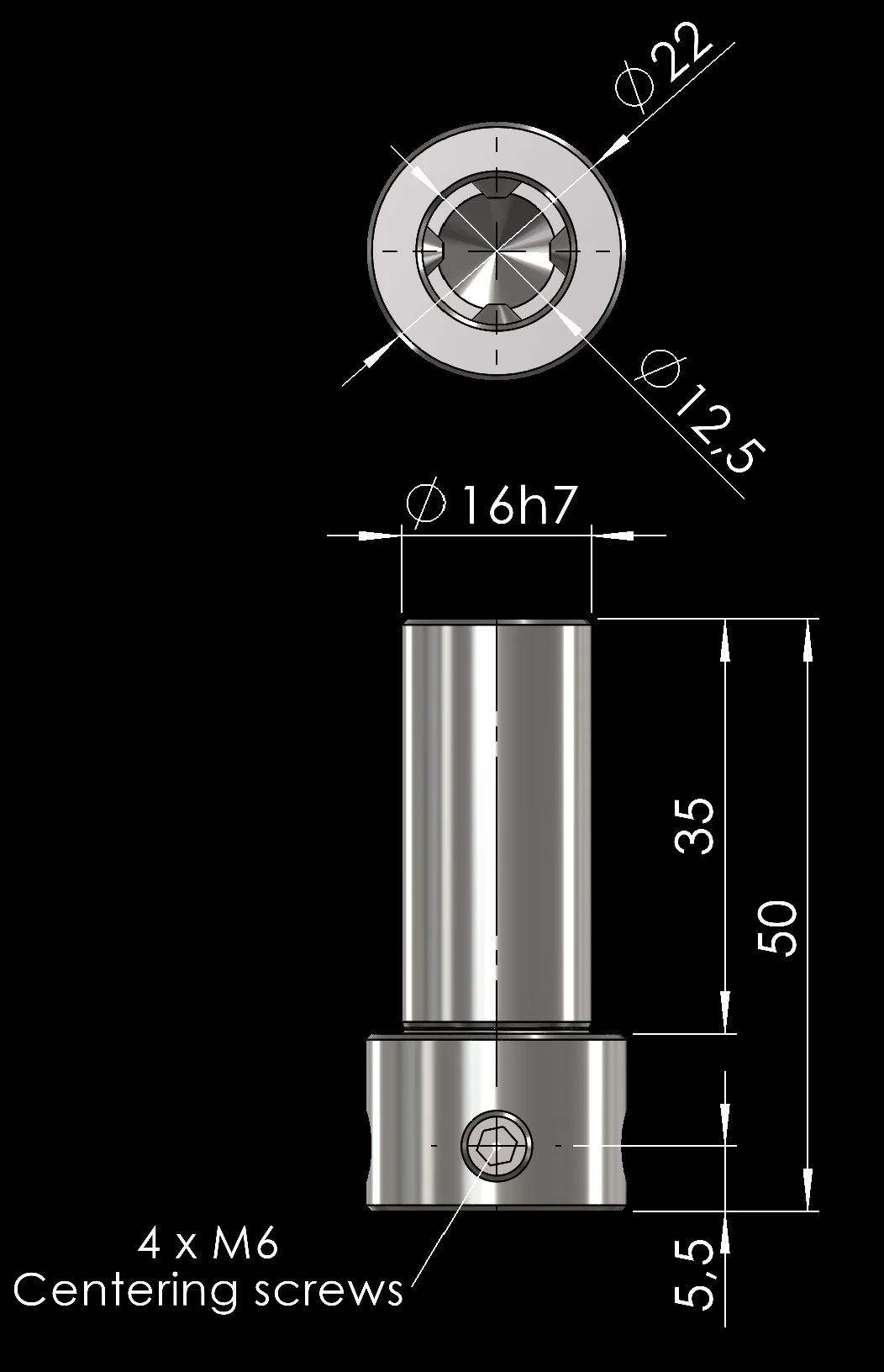

The CS16 clamping shank is used to mount TP1 probes in the machine spindle. Four M6 screws around the centering collar provide precise centering of the stylus with the spindle axis.
